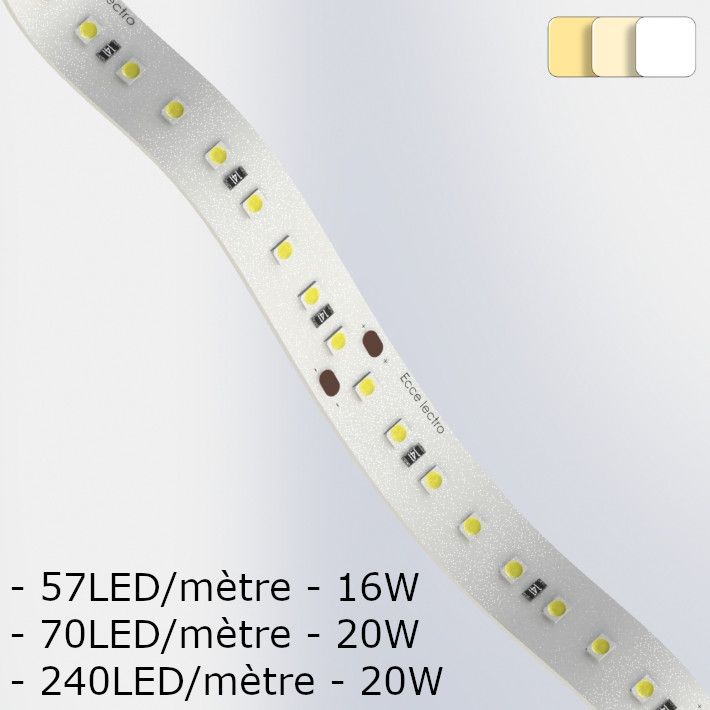

RUBAN LED POWER WHITE

✔ Dimensions : 4800x8x3mm (Breakable every 5cm or 10cm)
✔ Tightness: Available in IP20 or IP65
✔ Applications: Cornice, recessed ceiling, layout

LED Strip Powerful, supple and breakable white. Possibility of integrating it in a watertight sheath or in an aluminum profile to realize all your interior projects. High luminosity LED strip configurable according to your projects.

Request your quote
Category:

57LED/meter - 16W

POWER RUB4

  • Coil Dimensions : 4800 x 8 x 3mm (Breakable every 12cm)
  • Number of LEDs: 57
  • Power: 16W
  • Colors: White
  • Color temperature: 2700K | 4000K
  • IRC : 80
  • Gradable : Yes
  • luminous flux: 2200lm/m | 2300lm/m
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Power supply: 24Vcc
  • Electric class: Class III
  • Connection: By 2 wires
  • IK: IK04
  • IP : IP20
  • Fixation : Tape to fix in profile
  • Compliance RoHS | EC | EN 60598-1
  • Warranty: 5 years

70LED/meter - 20W

POWER RUB9

  • Coil Dimensions : 4800 x 8 x 3mm (divisible every 5cm)
  • Number of LEDs: 70
  • Power: 20W
  • Colors: White
  • Color temperature: 2700K | 4000K
  • IRC : 80
  • Gradable : Yes
  • luminous flux: 2600lm/m | 2900lm/m
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Power supply: 24Vcc
  • Electric class: Class III
  • Connection: By 2 wires
  • IK: IK04
  • IP : IP20
  • Fixation : Tape to fix in profile
  • Compliance RoHS | EC | EN 60598-1
  • Warranty: 5 years

240LED/meter - 20W

POWER RUB14

  • Coil Dimensions : 5000 x 8 x 3mm (Breakable every 3cm)
  • Number of LEDs: 240
  • Power: 20W
  • Colors: White
  • Color temperature: 2700K | 4000K
  • IRC : 80
  • Gradable : Yes
  • luminous flux: 2050lm/m | 2500lm/m
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Power supply: 24Vcc
  • Electric class: Class III
  • Connection: By 2 wires
  • IK: IK04
  • IP : IP20
  • Fixation : Tape to fix in profile
  • Compliance RoHS | EC | EN 60598-1
  • Warranty: 5 years

Application

• Cornice
• Ceiling disbursed
• Layout

Technical sheet

Fiche Technique Power WHITE (PDF)
Data Sheet Power WHITE EN (PDF)
Fichier Power WHITE 16W (IES)
Fichier Power WHITE 20W (IES)
