DRIVER DMX COLOR’PACK EVO

✔ Power: 350 / 500mA
✔ DMX Control
✔ Applications: Dynamic Architectural Lighting...

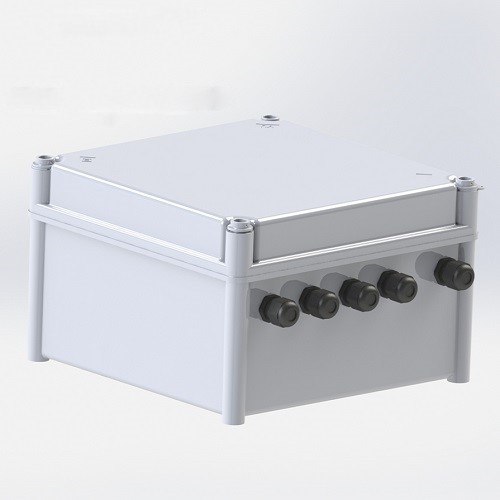

Waterproof DMX LED driver incorporating both the driver cards for all your lights and the power supply system.

ACHIEVEMENTS :
Museum Saint Laurent
Technicentre SNCF Nevers

Description

Driver DMX Color’Pack Evo LED DMX

  • Dimensions : 270*270*171mm
  • Materials: Waterproof ABS body
  • t ° of operation : -20 ° C to + 50 ° C
  • Power supply Input : 230 Vca
  • Power supply Output : 350/500/750 mA | 24/48 Vcc
  • Power consumption : 200W
  • Electric class: Class II
  • Connection: Cable gland and screw terminals
  • Connection DMX (input) : 1
  • Connection DMX (output) : 1
  • Connection PWM : 4 or 8 or 12 ways
  • IK: IK10
  • IP : IP67
  • Fixation : Screws not provided
  • Compliance: THIS
  • Warranty: 3 years
  • Manufacturing location: France

Application

• IT ISlighting technique
• Dynamic architectural lighting

Technical sheet

Fiche Technique Color Pack Evo PDF
Color Pack Evo Datasheet PDF
