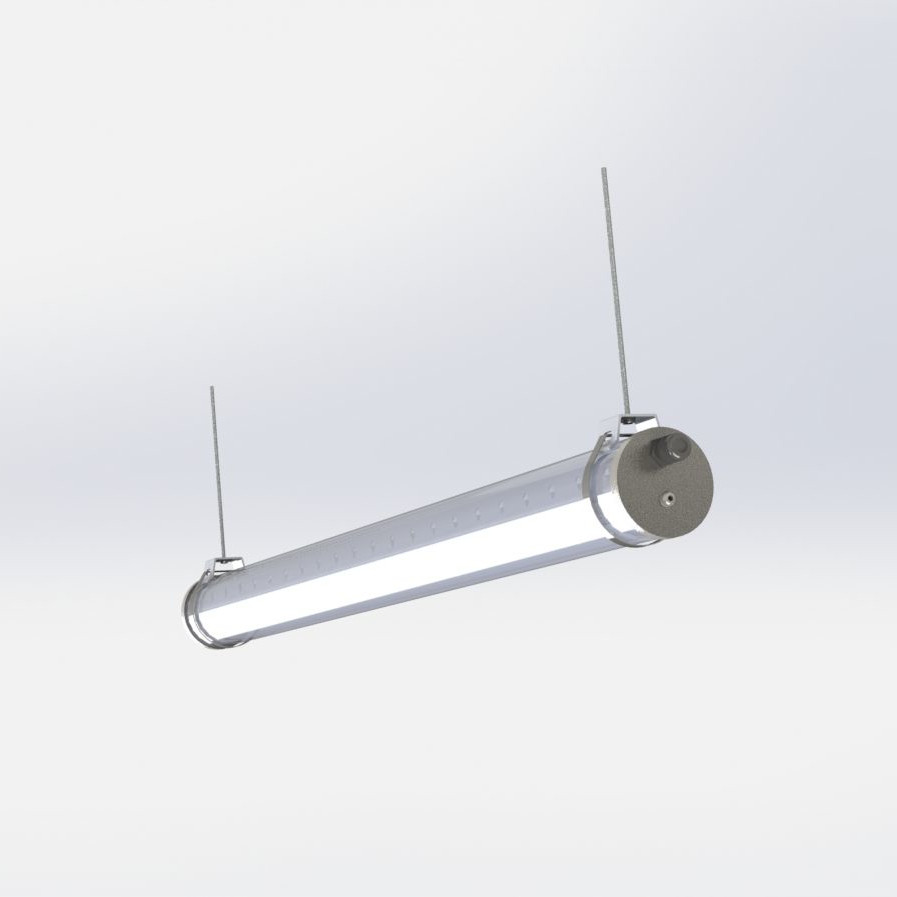

TUBULAR BALDER MAX RGB

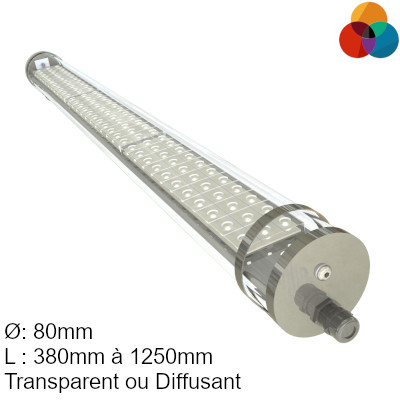

✔ Diameter: 80 mm
✔ Tube: Transparent or Diffusing
✔ Applications: Dynamic lighting, architectural lighting

LED Tubular RGB diameter 80mm waterproof for dynamic and architectural lighting. Balder MAX RGB is a range of tubular luminaires with high luminous intensity R+V+B LEDs made of polycarbonate and stainless steel for maximum resistance.

ACHIEVEMENTS:
Flaine Cable car

Palais des Sports Pierre -Coulon

380mm

BALDER MAX RVB 33 LED Tubular

  • Dimensions : 380mm
  • Number of LEDs: 33
  • Power: 17W
  • Luminous flux transparent tube : green 330lm + red 150lm + blue 80lm
  • Luminous flux diffusing tube : green 198lm + red 90lm + blue 48lm
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, green, blue (red-orange, amber, green-yellow, royal blue optional)

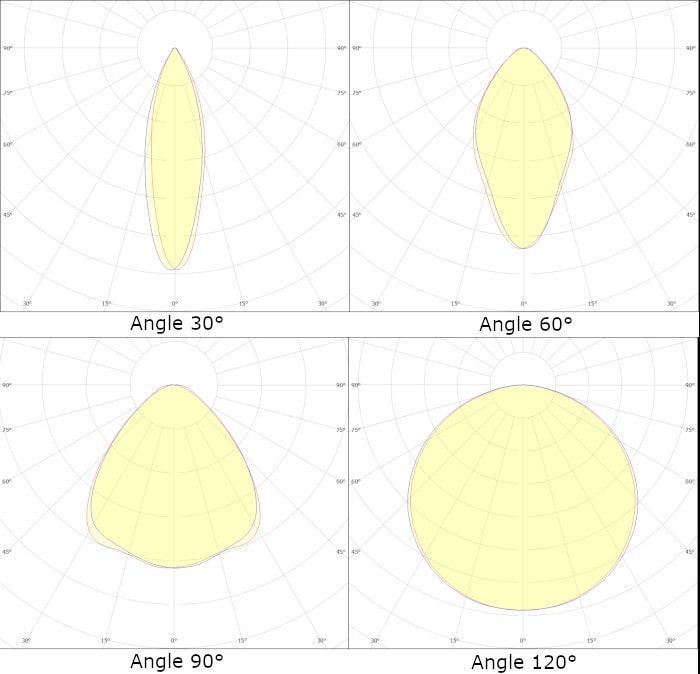

  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

650mm

BALDER MAX RVB 66 LED Tubular

  • Dimensions : 650mm
  • Number of LEDs: 66
  • Power: 34W
  • Luminous flux transparent tube : vert 660lm + rouge 300lm + bleu 160lm
  • Luminous flux diffusing tube : vert 396lm + rouge 180lm + bleu 96lm
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, green, blue (red-orange, amber, green-yellow, royal blue optional)
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

1000mm

BALDER MAX RVB 99 Tubulaire LED R+V+B

  • Dimensions : 100mm
  • Number of LEDs: 99
  • Power: 51W
  • Luminous flux transparent tube : vert 1000lm + rouge 450lm + bleu 240lm
  • Luminous flux diffusing tube : vert 600lm + rouge 270lm + bleu 144lm
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, green, blue (red-orange, amber, green-yellow, royal blue optional)
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

1250mm

BALDER MAX RVB 132 LED Tubular

  • Dimensions : 1250mm
  • Number of LEDs: 132
  • Power: 68W
  • Luminous flux transparent tube : vert 1330lm + rouge 600lm + bleu 320lm
  • Luminous flux diffusing tube : vert 798lm + rouge 360lm + bleu 192lm
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, green, blue (red-orange, amber, green-yellow, royal blue optional)
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

Dynamic lighting
• Architectural lighting

Technical sheet

Fiche Technique Balder Max RVB PDF

Data Sheet Balder Max RGB PDF

Plan Balder Max RVB PDF
