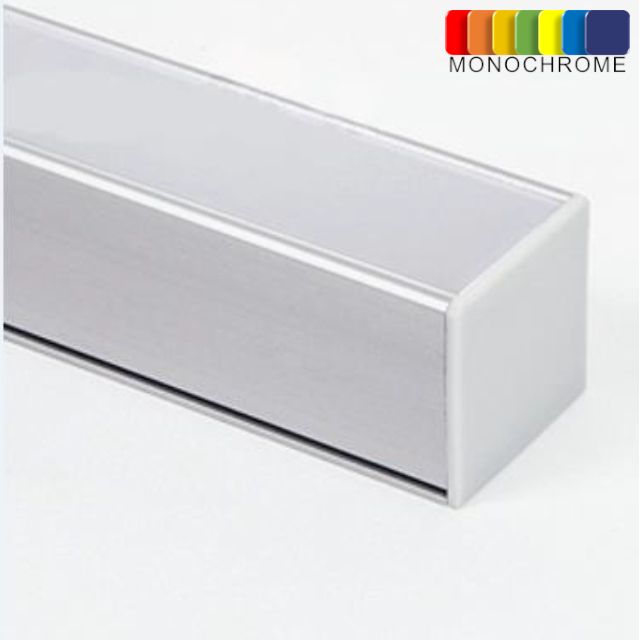

LED STRIP ALUMINIUM | H24W26

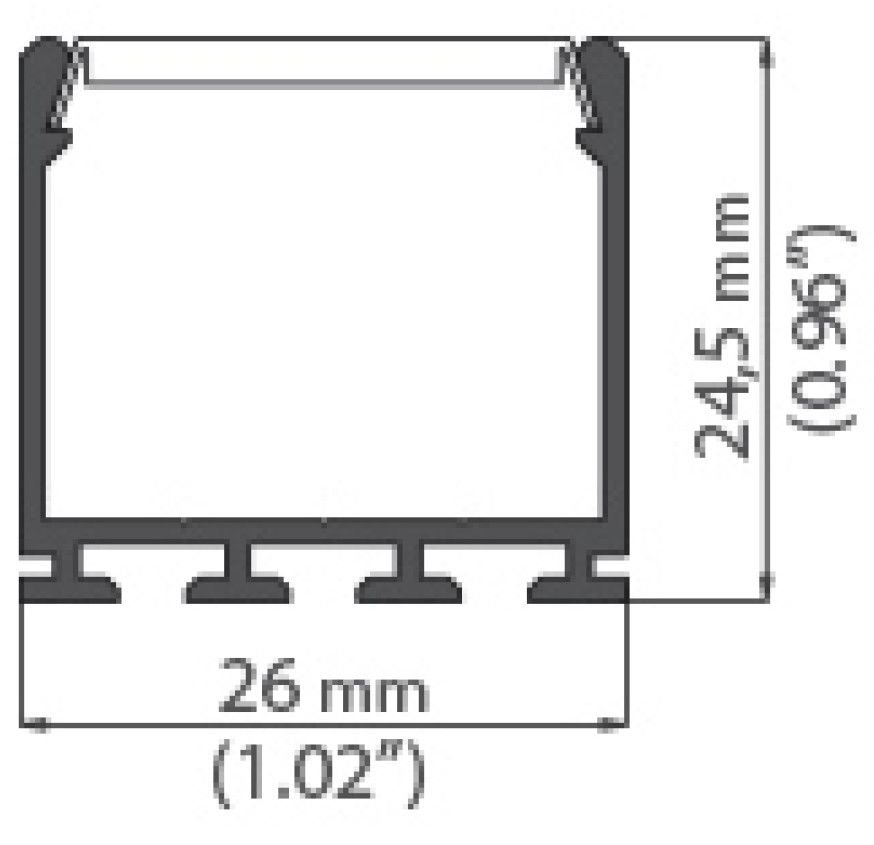

Dimensions: Section 24 * 26mm | Maximum length 3m
✔ Waterproofing: IP67
✔ Applications : general lighting, indoor, outdoor

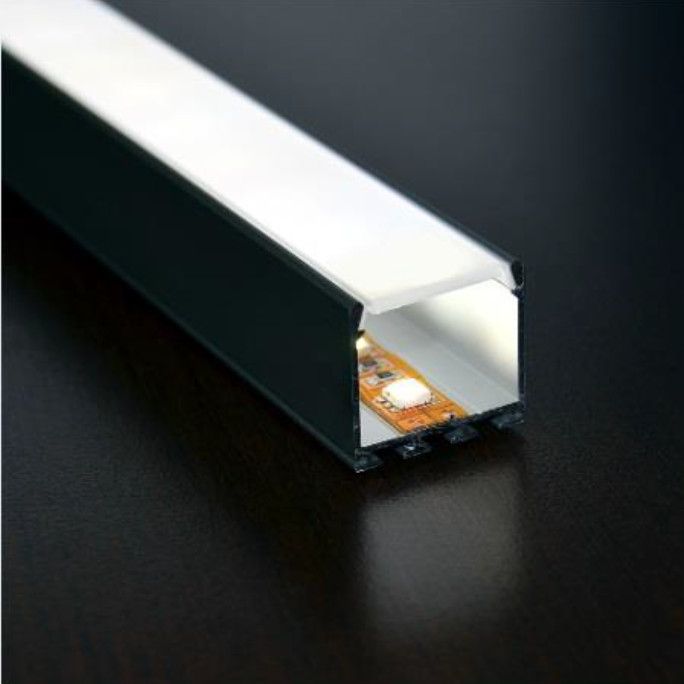

LED Strip Aluminium Lumi'Ramp C Diffusing Profile H24W26 equipped with Lumi Color (LED Color) in a aluminium profile anodized with waterproof polyurethane encapsulation. Thanks to its tailor-made dimensions, this strip allows you to carry out all your interior and exterior projects. Contact us to configure your tailor-made strips.

Request your quote

60LEDs / meter - 12W

Batten H24W26 - 12W Recessed

  • Dimensions : Section 24 * 26mm | Maximum length 3m
  • Number of LEDs: 60 LED/m
  • Power : 12W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color:Red | Green | Blue | Amber
  • IRC : 80
  • luminous flux: 50lm (red) | 80lm (green) | 20lm (blue) | 30lm (amber)
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

120LEDs / meter - 8W

Batten H24W26 - 8W Recessed

  • Dimensions : Section 24 * 26mm | Maximum length 3m
  • Number of LEDs: 120 LED/m
  • Power : 8W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color:Red | Green | Blue | Amber
  • IRC : 80
  • luminous flux: 50lm (red) | 80lm (green) | 20lm (blue) | 30lm (amber)
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

Application

  • General lighting
  • Indoor lighting
  • Outdoor lighting
  • Architectural lighting
  • Retro lighting
  • Arrangement

Technical sheet

Fiche Technique H24W26 Color (PDF)
Data Sheet H24W26 EN (PDF)
