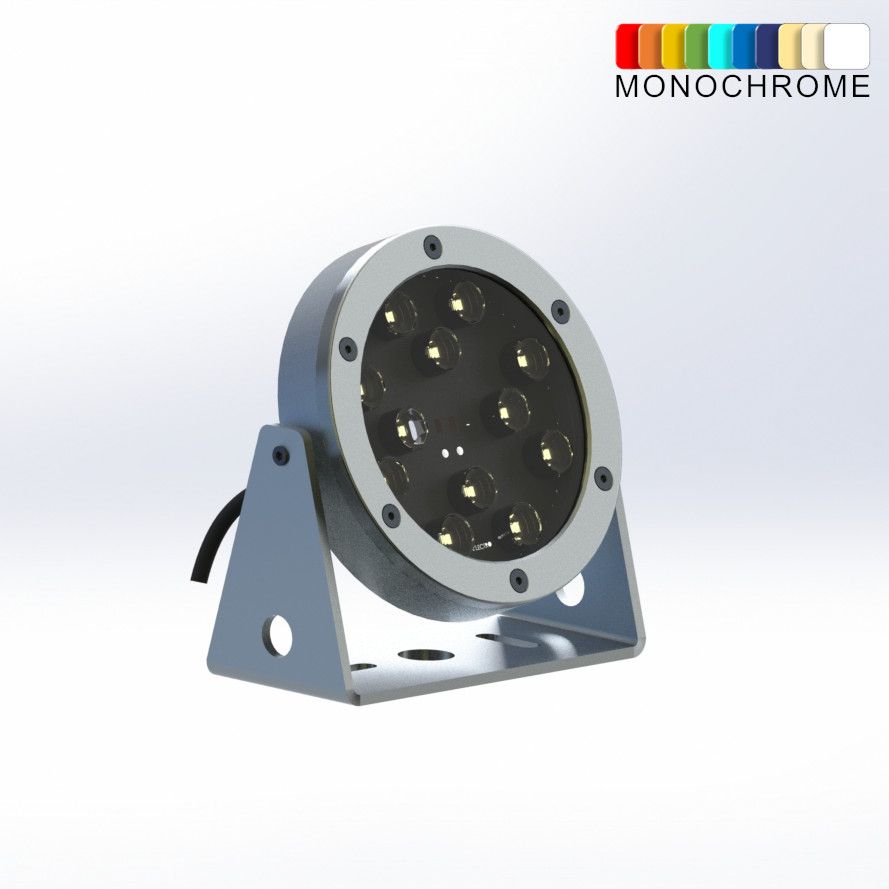

SPOTLIGHT AEC 12 MONOCHROME

Flux lumineux : 3000 lumens (Blanc)
Light ray: 10°| 20°| 35°| 50°| elliptic
✔ Applications: Architectural, Lighting

Architectural monochrome, RGB or RGBW waterproof floodlight that integrates 12 Power LEDs in an anodized aluminum body. With its specific optics, it provides an extensive or intensive luminous flux depending on the application.

ACHIEVEMENTS:
Marseille-Provence Airport terraces
Technicentre SNCF Nevers

Request your quote

Description

Projecteur Architectural AEC 12 Monochrome Architectural monochrome, RGB or RGBW waterproof floodlight LED IP67

  • Dimensions : H90mm x ø134mm
  • Number of LEDs: 12
  • Power: 25W
  • luminous flux: 3000 lumens (White)
  • Materials: Anodized aluminium body and polycarbonate glass
  • Color: White | Blue | Red | Green
  • Color temperature: 2700K | 3000K | 4000K | 5600K | 6500K
  • Angle : 10°| 20°| 35°| 50°| elliptic
  • Lifespan: 50 000 hours
  • Operational temperature: -20°C to +45°C
  • Voltage: 24Vcc
  • Power: 500 or 700 mA
  • Optional gradation: DMX | PWM
  • Electric class: Class III
  • Connection: Cable L = 1m 2x1mm²
  • IRC : 80
  • IK: IK10
  • IP : IP67
  • Fixation : Anodised aluminium or stainless steel 2-point swivel mounting bracket
  • Compliance: CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• Architectural lighting
• Functional lighting

Technical sheet

Fiche Technique Spot AEC Mono 12 (PDF)
Data Sheet Spotlight AEC Mono 12 EN (PDF)
Plan Spot AEC 12 (PDF)
Fichier IES AEC 12
