LED STRIP PROFILE LUMI'RAMPE D

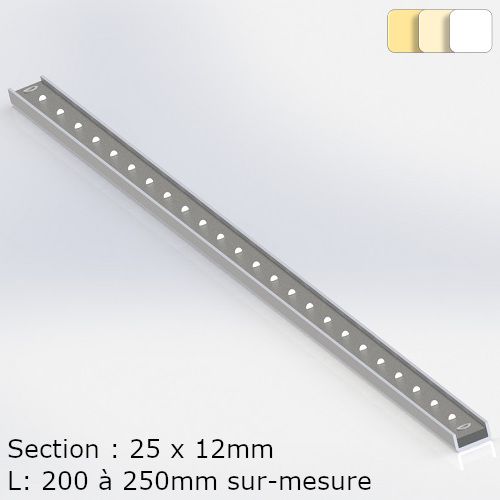

✔ Dimensions: 200 to 250mm bespoke | section 25x12mm
✔ Waterproofing: IP67
✔ Applications: Highlighting façade, Retro ledge lighting...

LED Strip Profile White monochrome LED in a stainless steel profile with a polyurethane resin for total waterproofing.

ACHIEVEMENTS :
Gateway Boulazac
Hôtel de la Région Rhône-Alpes
Casino Terreazur

15 LED/m | 300 lm/m

LUMIRAMP D | 300lm

  • Dimensions : Lg 200mm to 250mm custom | section 25x12mm
  • Number of LEDs: 15LED/m
  • Power : 2,5W/m
  • Body materials: Profile stainless steel and resin PU
  • Couleurs corps : Inox/ RAL en option
  • Color temperature: 2700K to 6500K
  • luminous flux: 300lm/m
  • Angle : 10° | 30° | 60°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C à 50°C
  • Power supply: 12Vcc
  • Dimming / Steering: PWM | Tension
  • Electric class: Class III
  • Connection: Câble 2×0.75mm²
  • IK: IK10
  • IP : IP67
  • Fixation : Réservation pour vis traversantes tous les 20cm
  • Compliance RoHS | EC | EN 60598-1
  • Incandescent wire test: 850°C
  • Warranty: 3ans
  • Manufacturing location: France

30 LED/m | 600 lm/m

LUMIRAMP D | 600lm

  • Dimensions : Lg 200mm to 250mm custom | section 25x12mm
  • Number of LEDs: 30LED/m
  • Power : 5W/m
  • Body materials: Profile stainless steel and resin PU
  • Couleurs corps : Inox/ RAL en option
  • Color temperature: 2700K to 6500K
  • luminous flux: 600lm/m
  • Angle : 10° | 30° | 60°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C à 50°C
  • Power supply: 24Vcc
  • Dimming / Steering: PWM | Tension
  • Electric class: Class III
  • Connection: Câble 2×0.75mm²
  • IK: IK10
  • IP : IP67
  • Fixation : Réservation pour vis traversantes tous les 20cm
  • Compliance RoHS | EC | EN 60598-1
  • Incandescent wire test: 850°C
  • Warranty: 3ans
  • Manufacturing location: France

Application

• Mise en lumière de façade
• Cornice backlighting
• Eclairage de locaux humides

Technical sheet

Fiche Technique Lumi Rampe D PDF

Lumi Rampe D Data Sheet EN PDF
