LED STRIPS PROFILES HANDRAIL

Dimensions : Section 12*16mm | Length 3m max
✔ Waterproofing: IP67
✔ Applications : general lighting, indoor, outdoor

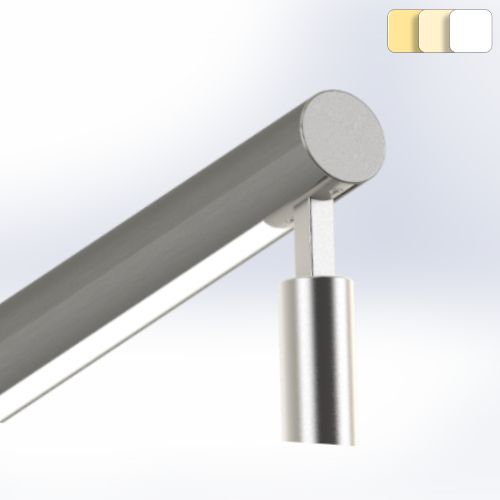

LED Strip Aluminium H12W16 to integrate into LED stair railing tubes or handrails. Professional light fitting easily into round body guards. The LED handrail is used to highlight walkways or stairs.

ACHIEVEMENTS :
Hotel de la région Rhône-Alpes
Paris Stock Exchange

60LEDs / meter - 12W

LED STRIP ALUMINIUM H12W16 – 12W Recessed

  • Dimensions : Section 12*16mm | Length 3m max
  • Number of LEDs: 60 LED/m
  • Power : 12W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 3000K | 4000K | 5000K
  • IRC : 80
  • luminous flux: 1000lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

120LEDs / meter - 8W

LED STRIP ALUMINIUM H12W16 – 8W Recessed

  • Dimensions : Section 12*16mm | Length 3m max
  • Number of LEDs: 120 LED/m
  • Power : 8W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 3000K | 4000K | 5000K
  • IRC : 80
  • luminous flux: 350lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

Application

  • General lighting
  • Indoor lighting
  • Outdoor lighting
  • Architectural lighting
  • Retro lighting
  • Arrangement

Technical sheet

Fiche Technique Réglette Main Courante LED PDF
Data Sheet LED Strip Profiles Handrail PDF
