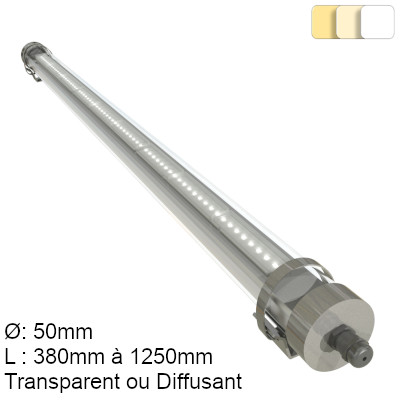

TUBULAR MINI BALDER

✔ Diamètre : 50 mm
✔ Tube: Transparent or Diffusing
✔ Applications: General Lighting, Technical Areas, Parking...

LED Tubular diameter 50mm waterproof for general and technical lighting. Mini Balder is a range of tubular luminaires with high luminous intensity made of polycarbonate and stainless steel for maximum resistance.

380mm

MINI BALDER 24 LED Tubular

  • Dimensions : 380mm
  • Number of LEDs: 24
  • Power: 8W
  • Luminous flux transparent tube : 1000lm
  • Luminous flux diffusing tube : 600lm
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 220Vca
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

650mm

MINI BALDER 48 Tubulaire

  • Dimensions : 650mm
  • Number of LEDs: 48
  • Power: 16W
  • Luminous flux transparent tube : 2000lm
  • Luminous flux diffusing tube : 1200lm
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 220Vca
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

1000mm

MINI BALDER 72 LED Tubular

  • Dimensions : 1000mm
  • Number of LEDs: 72
  • Power: 24W
  • Luminous flux transparent tube : 3000lm
  • Luminous flux diffusing tube : 1800lm
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 220Vca
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

1250mm

MINI BALDER 96 Tubulaire

  • Dimensions : 1250mm
  • Number of LEDs: 96
  • Power: 32W
  • Luminous flux transparent tube : 4000lm
  • Luminous flux diffusing tube : 2400lm
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• General lighting
• Lighting technical areas
• Lighting car parks

Technical sheet

Fiche Technique Mini Balder PDF

Data Sheet Mini Balder PDF

Plan Mini Balder PDF
