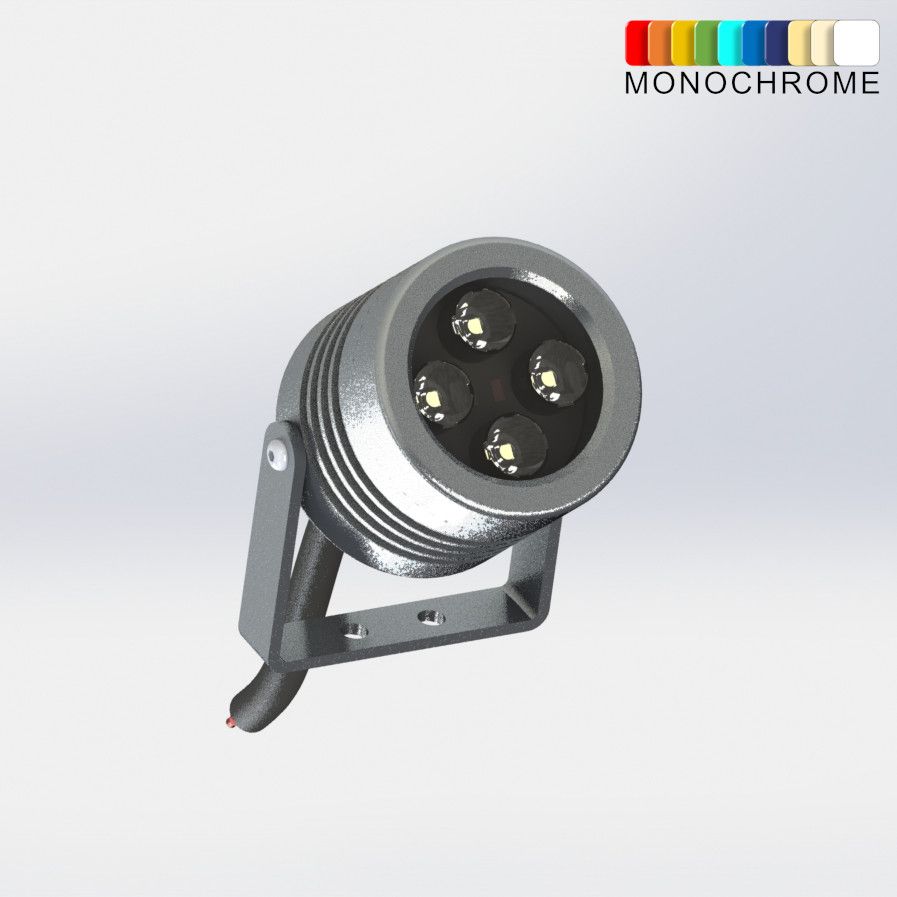

SPOTLIGHT AEC 4 MONOCHROME

✔ Luminous flux: 1000 lm (White)
Light beam : 10°| 20°| 35°| 50°| elliptical
✔ Applications: Architectural, Lighting

Spotlight Architectural LED Monochrome waterproof exterior which integrates 4 Power LEDs in an anodized aluminum body. With its specific optics, it provides an extensive or intensive monochromatic light flux depending on the applications.

Achievements:
Terrace Airport Marseille-Provence
Technicentre SNCF Nevers

Request your quote

Description

AEC 4 Architectural Projector Spot 4 power LED

  • Dimensions : H57mmx ø65mm
  • Number of LEDs: 4
  • Power: 8W
  • luminous flux: 1000 lumens (White)
  • IRC : 80
  • Materials: Anodized aluminium body and polycarbonate glass
  • Color: White | Blue | Red | Green ...
  • Color temperature: 2700K | 3000K | 4000K | 5600K | 6500K
  • Angle : 10°| 20°| 35°| 50°| elliptic
  • Lifespan: 50 000 hours
  • Operational temperature: -20°C to +45°C
  • Voltage: 24Vcc
  • Power: 500 or 700 mA
  • Optional gradation: DMX | PWM
  • Electric class: Class III
  • Connection: Cable L = 1m 2x1mm²
  • IK: IK10
  • IP : IP67
  • Fixation : Anodised aluminium or stainless steel 2-point swivel mounting bracket
  • Compliance: CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• Architectural lighting
• Functional lighting

Technical sheet

Fiche Technique Spot AEC 4 Mono (PDF)
Data Sheet Spotlight AEC 4 Mono EN (PDF)
Plan Spot AEC 4 (PDF)
IES AEC 4 file
