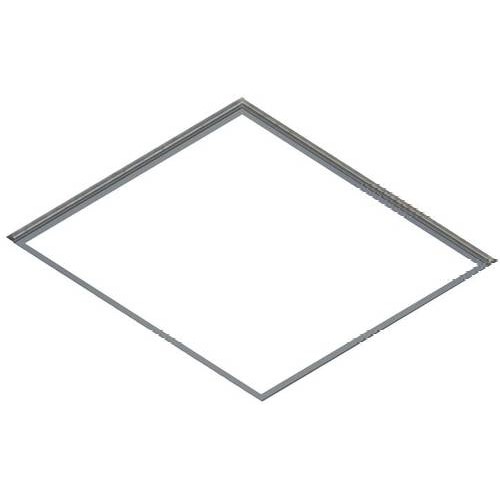

Eccelectro - Dalle NELIO plafonnier LED carré rectangle

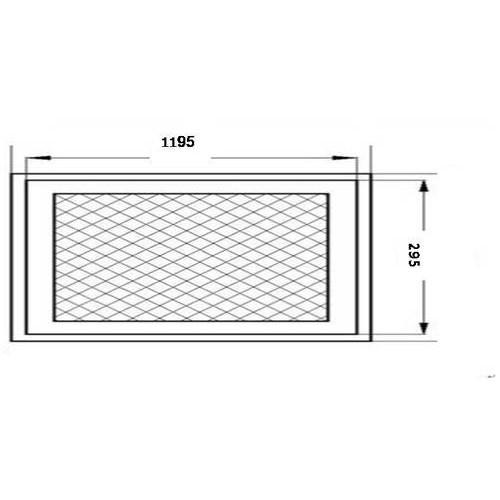

Eccelectro schéma 1 - NELIO

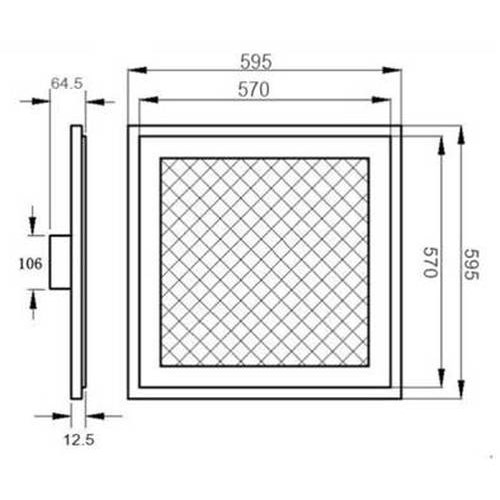

Eccelectro schéma 2 - NELIO

FROM NELIO

✔ Tension: 230Vca / 50 Hertz
✔ Number of LEDs: 480 to 720 LEDs
✔ Applications: Lighting corridors, offices

Efficient and efficient LED panel ceiling light to be recessed in suspended ceilings for functional lighting.

Request your quote
Category:

595 x 595mm

NELIO 600

  • Dimensions : 595*595*12.5mm
  • Number of LEDs: 480 to 720 LEDs
  • Power: 32W
  • Color temperature: 3000K | 4000K | 6000K
  • luminous flux: 3200 lm
  • Materials: Body and diffuser PMMA or PC 850C 850C
  • Angle : 120°
  • Lifespan: 50 000 hours
  • Operational temperature: -25°C to +45°C
  • Voltage: 230Vca 50 Hertz
  • Gradation / Pilotage : Optional
  • Electric class: Class II
  • Connection: R02V cable
  • IK: IK10
  • IP : IP20
  • Fixation : Kit suspension or projecting
  • Compliance: RoHS | WHAT THE
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1195 x 1195mm

NELIO 1200

  • Dimensions : 1195*1195*23mm
  • Number of LEDs: 480 to 720 LEDs
  • Power: 40W
  • Color temperature: 4000K
  • luminous flux: 3200 lm
  • Materials: Body and diffuser PMMA or PC 850C 850C
  • Angle : 120°
  • Lifespan: 50 000 hours
  • Operational temperature: -25°C to +45°C
  • Voltage: 230Vca 50 Hertz
  • Gradation / Pilotage : Optional
  • Electric class: Class II
  • Connection: R02V cable
  • IK: IK10
  • IP : IP20
  • Fixation : Kit suspension or projecting
  • Compliance: RoHS | WHAT THE
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• corridors lighting
• office lighting

Technical sheet

Nelio Slab Technical Sheet (PDF)
