TUBULAR MINI BALDER COLOR

✔ Diamètre : 50 mm
✔ Tube: Transparent or Diffusing
✔ Applications: Architectural lighting, lighting, safety

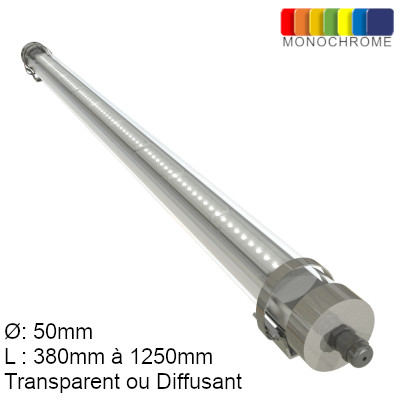

Tubular LED luminaire diameter 50mm monochrome waterproof for architectural and technical lighting. The Mini Balder Color is a range of tubular luminaires with high-intensity colour LEDs made of polycarbonate and stainless steel for maximum resistance.

ACHIEVEMENTS:
Quai ligne métro 1 et 14 Paris
Le Grand Marché Couvert de Vichy

380mm

MINI BALDER COLOR 24 Tubulaire

  • Dimensions : 380mm
  • Number of LEDs: 24
  • Power: 8W
  • Luminous flux transparent tube : 350lm (Vert), 150lm (Rouge), 100lm (Bleu)
  • Luminous flux diffusing tube : 210lm (Vert), 90lm (Rouge), 60lm (Bleu)
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color: Rouge, Vert, Bleu, Ambre (rouge-orange, vert-jaune, bleu royal en option
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC :NA
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67

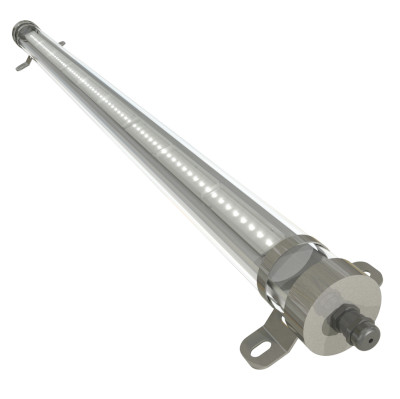

  • Fixation : 2 attachment legs

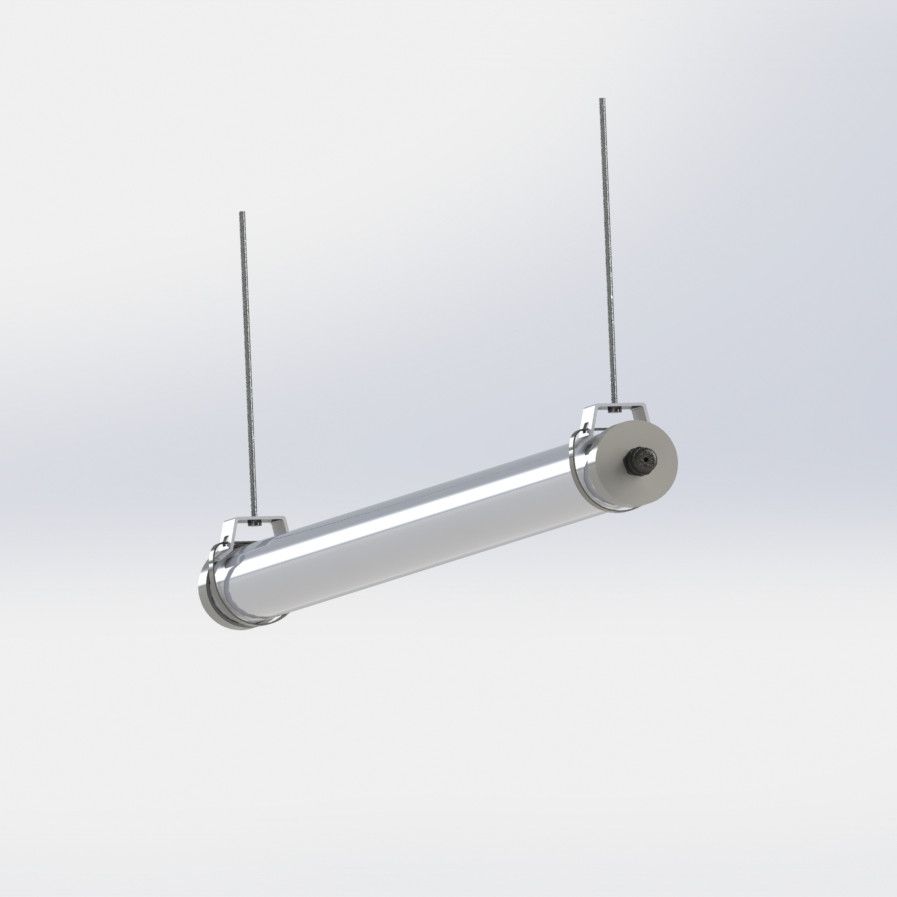

  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

650mm

MINI BALDER COLOR 48 Tubulaire

  • Dimensions : 650mm
  • Number of LEDs: 48
  • Power: 16W
  • Luminous flux transparent tube : 700lm (Vert), 300lm (Rouge), 200lm (Bleu)
  • Luminous flux diffusing tube : 420lm (Vert), 180lm (Rouge), 120lm (Bleu)
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color: Rouge, Vert, Bleu, Ambre (rouge-orange, vert-jaune, bleu royal en option)
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC :NA
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1000mm

MINI BALDER COLOR 72 Tubulaire

  • Dimensions : 1000mm
  • Number of LEDs: 72
  • Power: 24W
  • Luminous flux transparent tube : 1050lm (Vert), 450lm (Rouge), 300lm (Bleu)
  • Luminous flux diffusing tube : 630lm (Vert), 270lm (Rouge), 180lm (Bleu)
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color: Rouge, Vert, Bleu, Ambre (rouge-orange, vert-jaune, bleu royal en option)
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC :NA
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1250mm

MINI BALDER COLOR 96 Tubulaire

  • Dimensions : 1250mm
  • Number of LEDs: 96
  • Power: 32W
  • Luminous flux transparent tube : 1400lm (Vert), 600lm (Rouge), 400lm (Bleu)
  • Luminous flux diffusing tube : 840lm (Vert), 360lm (Rouge), 240lm (Bleu)
  • Diameter: 50mm
  • Materials: Polycarbonate et inox
  • Color: Rouge, Vert, Bleu, Ambre (rouge-orange, vert-jaune, bleu royal en option)
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC :NA
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Architectural lighting
• Eclairage de sécurité
• Eclairage signalétique

Technical sheet

Fiche Technique Mini Balder Color PDF

Data Sheet Mini Balder Color PDF

Plan Mini Balder Color PDF
