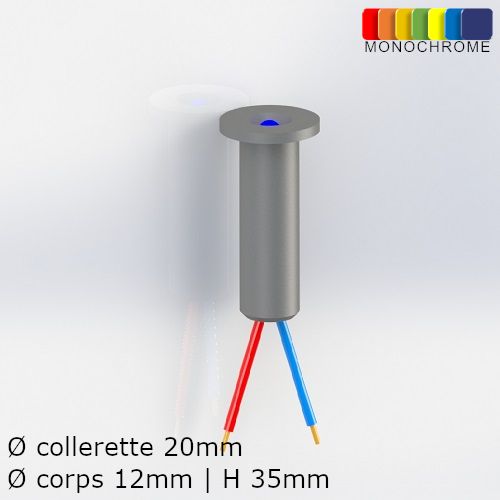

MONOCHROME CLICK LIGHT POINT

✔ Dimensions : Ø collar 20mm H35mm et Ø cylinder body 12mm
Body materials: Stainless steel body
✔ Applications: Obstacle marking (walking), light path...

Point Lumineux Encastrable monochrome LED mounted in an anti-corrosion stainless steel body and IP67 resin-coated for beaconing.

Description

Point Lumineux Clic Monochrome Luminaire LED miniature

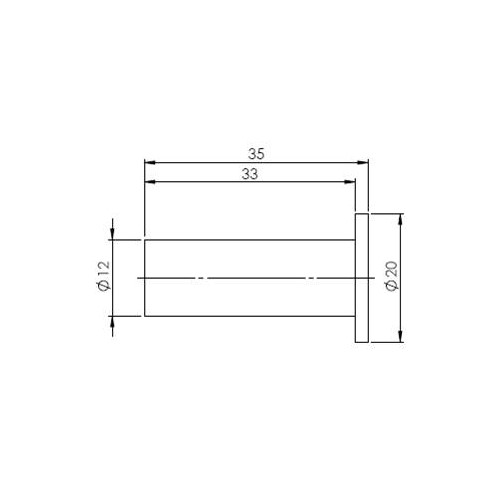

  • Dimensions : Ø collar 20mm H35mm et Ø cylinder body 12mm
  • Number of LEDs: 1
  • Power: 3.6W to 4.8W
  • Body materials: Stainless steel body
  • Color: Rouge | Vert | Bleu …
  • Angle : 15°| 30°| 50°
  • Lifespan: 50,000 hours L 70
  • t°de fonctionnement : Maximum 50 ° C
  • Voltage: 24Vcc
  • Electric class: Class III
  • Connection: 2 threads 20cm
  • IK: IK10
  • IP : IP67
  • Fixation : Assembling by gluing into a ø12.5mm piercing
  • Compliance: RoHS| CE | EN 60598-1
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Cheminement lumineux
• Mise en valeur de surfaces planes
• Marquage d’obstacles, marches

Technical sheet

Fiche Technique Clic PDF

Clic Technical Datasheet EN PDF
