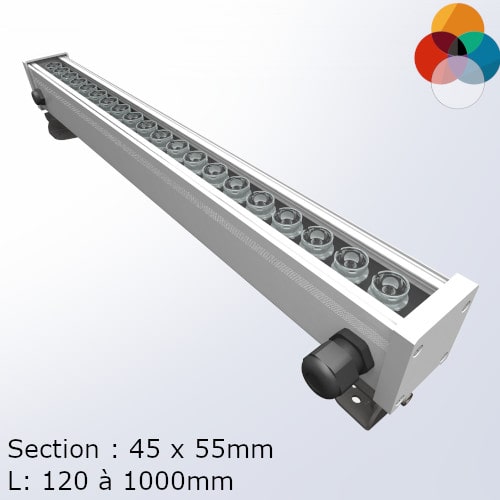

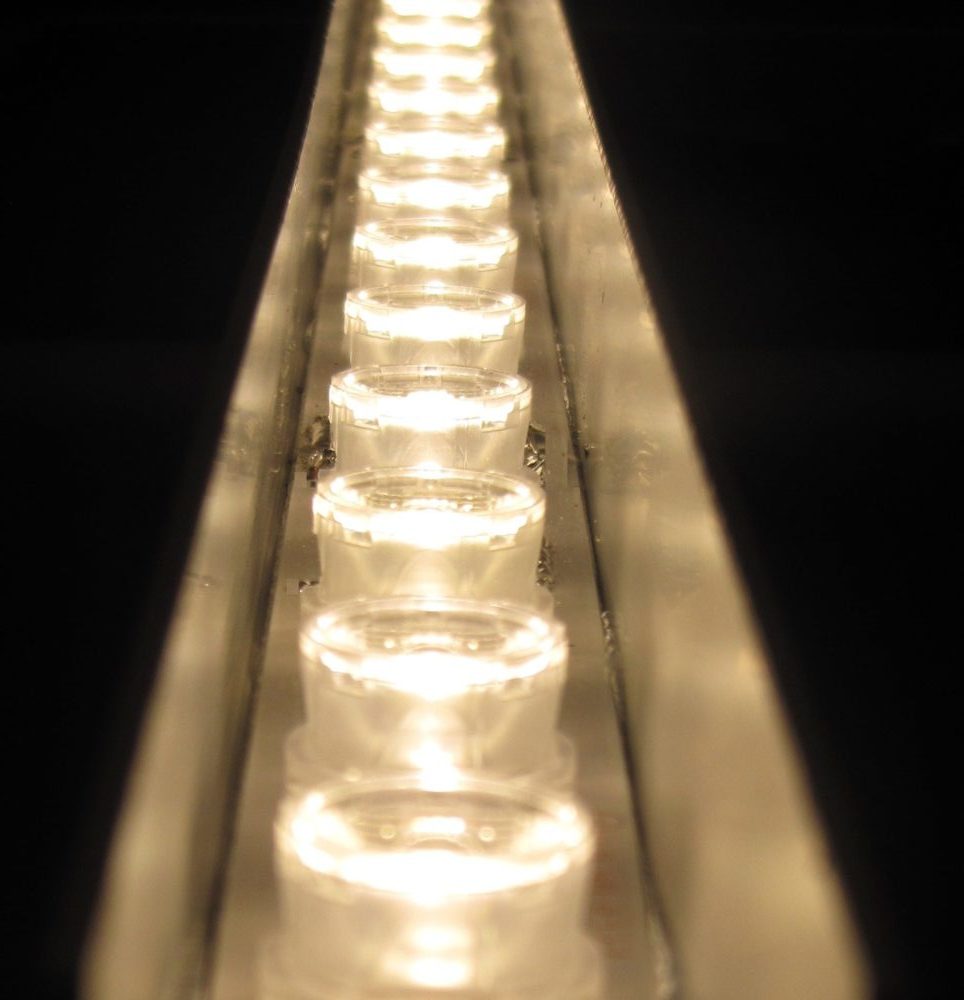

WALLWASHER POWER RAMP EVO RGBW

WALLWASHER POWER RAMP EVO RGBW

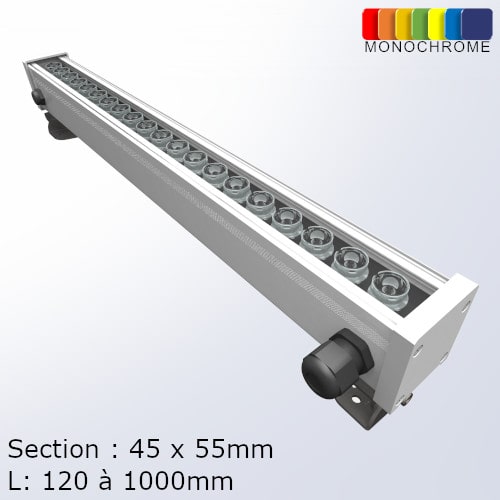

Dimensions : 12cm, 30cm, 50cm, 100cm | section 45*55 mm
✔ Waterproofing: IP65
✔ Applications: wallwasher, window frame lighting, high bay lighting...

LED Wallwasher made of anodized or lacquered aluminum and UV polycarbonate to withstand shocks and weather. Very compact linear luminaire with integrated or remote power supply for architectural enhancement.
Large choice of optics for remarkable homogeneity. Variable color temperature from 2700K to 7000KDynamic color mixing (Tunable white) RGBW allows a surface coating without parasitic beam. Smart Lighting control using DALI, 0-10V, DMX protocol for dimming from 0 to 100%.

ACHIEVEMENTS:
Paris Defense Arena
Vichy covered market
Deauville Racecourse

Description

Power Ramp LED wallwasher strip Professional Lighting Architectural lighting

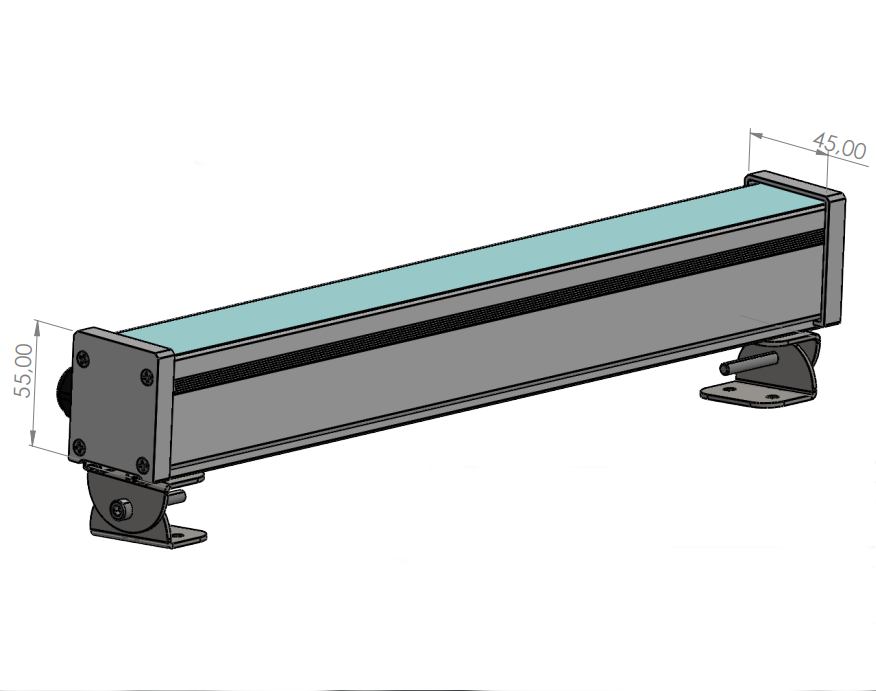

  • Dimensions : Lg. 120mm(4LED), 300mm(12LED), 500mm(20LED), 1000mm(40LED) | section 45*55 mm
  • Number of LEDs: 4 to 40 LEDs
  • Power : 10W to 72W
  • Body materials: Body in aluminium anodized or lacquered paint anti corrosion
  • Glass materials: Glass flush clear anti UV polycarbonate
  • Color: RGB | RGBW
  • Color temperature: 2700K to 6500K
  • Symmetrical beam: 8° | 2*5°| 20°| 35°| 50°
  • Elliptical beam: 15°*50°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: Maximum 50 ° C
  • Power supply: 24V | 220Vca
  • Dimming / Steering: DMX addressable auto available
  • Electric class: Class III and class II according to model
  • Connection: Built-in power with electronic surge protection, double fast connectors for wiring through. Cable 2x0.75mm² | 4x0.75mm² | 5x0.75mm² and double PE polyamide Entry/Exit
  • IK: IK10
  • IP : IP65
  • Fixation : Laying on fixed or adjustable foot with locking screw
  • Compliance RoHS | EC | EN 60598-1
  • Glow wire test 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• Facade lighting
• Storefront lighting / signage
• Markup of stairs
• Outdoor terrace markup

Technical sheet

Fiche Technique Wallwasher (PDF)
Wallwasher Technical Datasheet EN (PDF)
Plan Power Ramp Evo (PDF)
Plan Power Ramp Evo 3D (PDF) (Download the file and open it with Adobe Reader to make it work)
