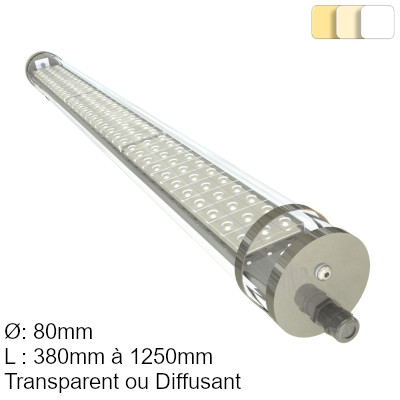

TUBULAR BALDER MAX

✔ Diameter: 80 mm
✔ Tube: Transparent or Diffusing
✔ Applications: General Lighting, Technical Zone, Parking...

Professional LED Tubular diameter 80mm waterproof for general and technical lighting. Balder MAX is a range of Professional tubular LEDs with high luminous intensity made of polycarbonate and stainless steel for maximum resistance.

See all our LED Tubulars here.

ACHIEVEMENTS:
Guynemer bridge
Car Park Subway Laurent Bonnevay

Pertuis Aquatic Center

Request your quote

380mm

BALDER MAX 33 Tubular

  • Dimensions : 380mm
  • Number of LEDs: 33
  • Power: 17W
  • Luminous flux transparent tube : 2000lm
  • Luminous flux diffusing tube : 1200lm
  • Diameter: 80mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90°| 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • IRC : > 80 and> 90 optional
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

650mm

BALDER MAX 66 Tubular

  • Dimensions : 650mm
  • Number of LEDs: 66
  • Power: 33W
  • Luminous flux transparent tube : 4000lm
  • Luminous flux diffusing tube : 2400lm
  • Diameter: 80mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90°| 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • IRC : > 80 and> 90 optional
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1000mm

BALDER MAX 99 Tubular

  • Dimensions : 1000mm
  • Number of LEDs: 99
  • Power: 49W
  • Luminous flux transparent tube : 6000lm
  • Luminous flux diffusing tube : 3600lm
  • Diameter: 80mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90°| 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • IRC : > 80 and> 90 optional
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1250mm

BALDER MAX 132 Tubular

  • Dimensions : 1250mm
  • Number of LEDs: 132
  • Power: 65W
  • Luminous flux transparent tube : 8000lm
  • Luminous flux diffusing tube : 4800lm
  • Diameter: 80mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 3000K | 4000K | 5000K
  • Angle : 30° | 60° | 90°| 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • IRC : > 80 and> 90 optional
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• General lighting
• Lighting technical areas
• Lighting car parks

Technical sheet

Fiche Technique Balder Max (PDF)
Data Sheet Balder Max (PDF)
Plan Balder Max (PDF)
Fichier Balder 33 (IES)
Fichier Balder 66 (IES)
Fichier Balder 99 (IES)
Fichier Balder 132 (IES)
