GROUND RECESSED SPOTLIGHT CYCLOPE WHITE

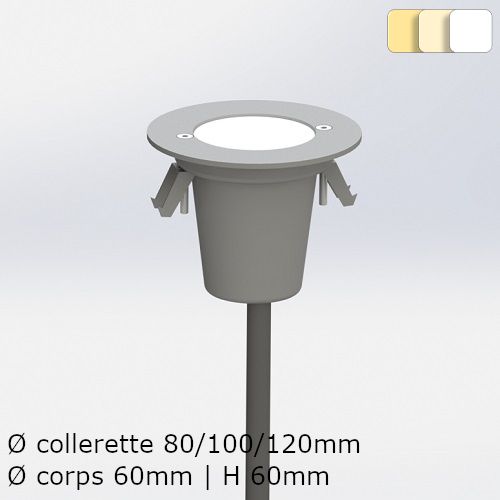

✔ Dimensions : Ø collar 80 to 120mm et Dim body H60 x Ø60mm
✔ Alimentation : 24Vca/cc or 230Vca
✔ Applications: interior/exterior signage, facade...

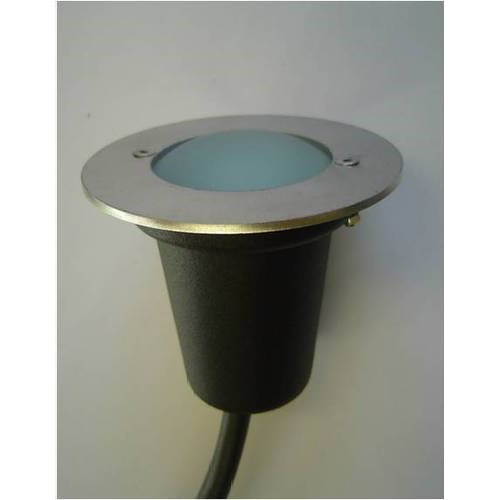

Recessed LED Spotlight Blanc étanche avec une power led résinée dans un corps en fonte d’aluminium compact. Son hublot clair ou sablé diffusant permet de l’utiliser comme spot ou balise.

80mm diameter

Recessed LED Spotlight 80mm

  • Maximum load: 400kg
  • Collar: Round ø80mm

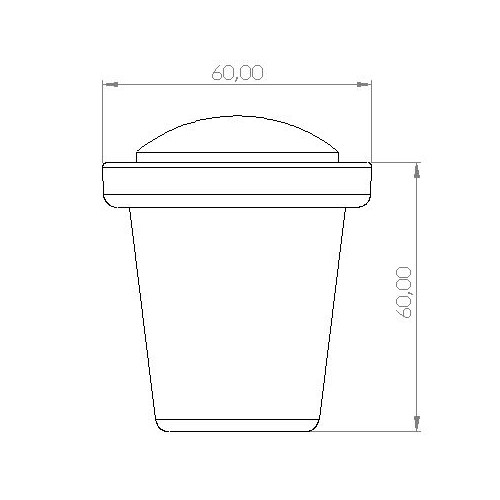

  • Dimensions : H60 x ø60mm
  • Number of LEDs: 1
  • Power : < 2W
  • Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
  • Colors: Warm white | Cool white | Neutral white
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to +60°C
  • Power supply: 24Vca/cc or 230Vca
  • Electric class: Class III or class II
  • Connection: Câble HO7RNF 2x1mm²
  • IK: IK10
  • IP : IP67
  • Optional fixing: Deep recess box (70mm)
  • Compliance : RoHS
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

100x100mm square

Recessed LED Spotlight 100mm

  • Maximum load: 400kg
  • Collar: 100*100mm square
  • Dimensions : H60 x ø60mm
  • Number of LEDs: 1
  • Power : < 2W
  • Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
  • Colors: Warm white | Cool white | Neutral white
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to +60°C
  • Power supply: 24Vca/cc or 230Vca
  • Electric class: Class III or class II
  • Connection: Câble HO7RNF 2x1mm²
  • IK: IK10
  • IP : IP67
  • Optional fixing: Deep recess box (70mm)
  • Compliance : RoHS
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

120mm diameter

Recessed LED Spotlight 120mm

  • Maximum load: 2.5 tonnes
  • Collar: Ronde ø120mm
  • Dimensions : H60 x ø60mm
  • Number of LEDs: 1
  • Power : < 2W
  • Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
  • Colors: Warm white | Cool white | Neutral white
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to +60°C
  • Power supply: 24Vca/cc or 230Vca
  • Electric class: Class III or class II
  • Connection: Câble HO7RNF 2x1mm²
  • IK: IK10
  • IP : IP67
  • Optional fixing: Deep recess box (70mm)
  • Compliance : RoHS
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Balisage extérieur
• Mise en valeur de façade
• Spot intérieur ou extérieur

Technical sheet

Fiche Technique Balise LED Encastrable Mini Cyclope PDF

Technical Data Sheet Mini Cyclope EN PDF
