GROUND RECESSED SPOTLIGHT RGB CYCLOPE

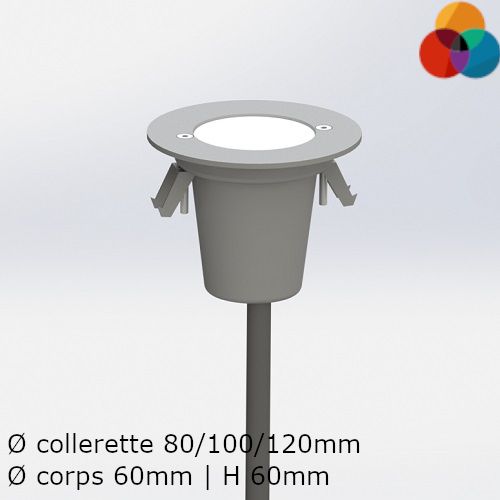

✔ Dimensions : Ø collar 80 to 120mm et Dim body H60 x Ø60mm
✔ Alimentation : 24Vca/cc or 230Vca
✔ Applications: interior/exterior signage, facade...

Recessed LED Spotlight Waterproof RGB with a power led resinated in a compact cast aluminium body. Its clear or sandblasted diffusing porthole allows it to be used as a spotlight or beacon.

Request your quote

80mm diameter

Recessed LED Spotlight 80mm

  • Maximum load: 400kg
  • Collar: Round ø80mm
  • Dimensions : H60 x ø60mm
  • Number of LEDs: 1
  • Power : <2W
  • Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
  • Colors: Blue | Red | Green | Amber | Orange ...
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to +60°C
  • Power supply: 24Vca/cc or 230Vca
  • Electric class: Class III or class II
  • Connection: HO7RNF 2x1mm² cable
  • IK: IK10
  • IP : IP67
  • Optional fixing: Deep recess box (70mm)
  • Compliance : RoHS
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

100x100mm square

Recessed LED Spotlight 100mm

  • Maximum load: 400kg
  • Collar: 100*100mm square
  • Dimensions : H60 x ø60mm
  • Number of LEDs: 1
  • Power : <2W
  • Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
  • Colors: Blue | Red | Green | Amber | Orange ...
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to +60°C
  • Power supply: 24Vca/cc or 230Vca
  • Electric class: Class III or class II
  • Connection: HO7RNF 2x1mm² cable
  • IK: IK10
  • IP : IP67
  • Optional fixing: Deep recess box (70mm)
  • Compliance : RoHS
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

120mm diameter

Recessed LED Spotlight 120mm

  • Maximum load: 2.5 tons
  • Collar: Round ø120mm
  • Dimensions : H60 x ø60mm
  • Number of LEDs: 1
  • Power : <2W
  • Materials: Body in cast aluminium | sightglass in clear, curved or sandblasted diffusing glass | optional lens
  • Colors: Blue | Red | Green | Amber | Orange ...
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to +60°C
  • Power supply: 24Vca/cc or 230Vca
  • Electric class: Class III or class II
  • Connection: HO7RNF 2x1mm² cable
  • IK: IK10
  • IP : IP67
  • Optional fixing: Deep recess box (70mm)
  • Compliance : RoHS
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Exterior markings
• Facade enhancement
• Indoor or outdoor spot

Technical sheet

Mini Cyclops Data Sheet (PDF)
Technical Data Sheet Mini Cyclope EN (PDF)
