✔ Dimensions: Height 13mm and ø100mm
✔ Power: 24Vcc
✔ Application: Square, architectural, road marking

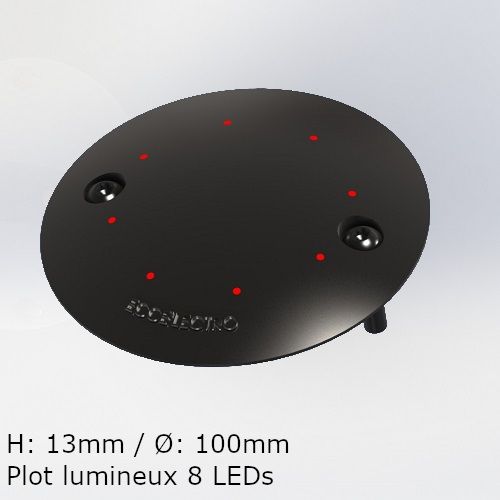

LED Architectural Marker with 8 LEDs in a 316L stainless steel body to resist the passage of vehicles.
See all our LED Beacons here.
LED ARCHITECTURAL MARKER PLASMA
Monochrome
Architectural Beacon Floor Plasma Color

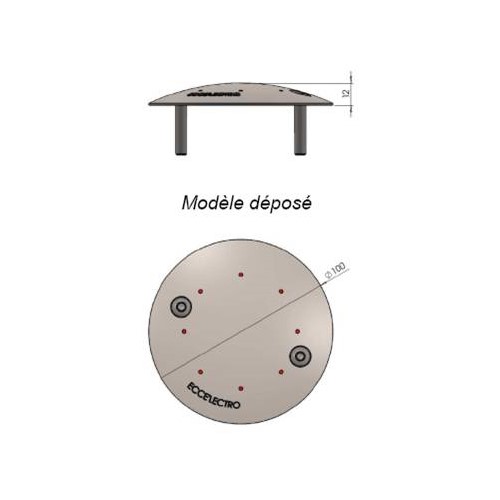

- Dimensions : Height 13mm and ø100mm
- Number of LEDs: 8
- Power: 3W
- Materials: 316L stainless body and polycarbonate
- Color: White | Blue | Red | Green | Amber
- Lifespan: 50,000 hours L 70
- Operational temperature: -30°C to 45°C
- Voltage: 24Vcc
- Gradation / Pilotage : Tension or DMX/PWM
- Electric class: Class III
- Connection: Cable 2/4*0.75mm² L=0.5m
- IK: IK10
- IP : IP68
- Fixation : 2 M8 stainless steel screws and optional flush-mounting box
- Compliance: NF EN 605598
- Incandescent wire test: 850°C
- Warranty: 3 years
- Manufacturing location: France
RGB
Architectural Beacon Floor Plasma RGB
- Dimensions : Height 13mm and ø100mm
- Number of LEDs: 8
- Power: 4W
- Materials: 316L stainless body and polycarbonate
- Color: RGB
- Lifespan: 50,000 hours L 70
- Operational temperature: -30°C to 45°C
- Voltage: 24Vcc
- Gradation / Pilotage : DMX/PWM
- Electric class: Class III
- Connection: Cable 2/4*0.75mm² L=0.5m
- IK: IK10
- IP : IP68
- Fixation : 2 M8 stainless steel screws and optional flush-mounting box
- Compliance: NF EN 605598
- Incandescent wire test: 850°C
- Warranty: 3 years
- Manufacturing location: France
Application
• Balisage architectural
• Place marking
• Path marking
Plasma Data Sheet (PDF
