LED STRIP ALUMINIUM | H24W26

Dimensions: Section 24 * 26mm | Maximum length 3m
✔ Waterproofing: IP67
✔ Applications : general lighting, indoor, outdoor

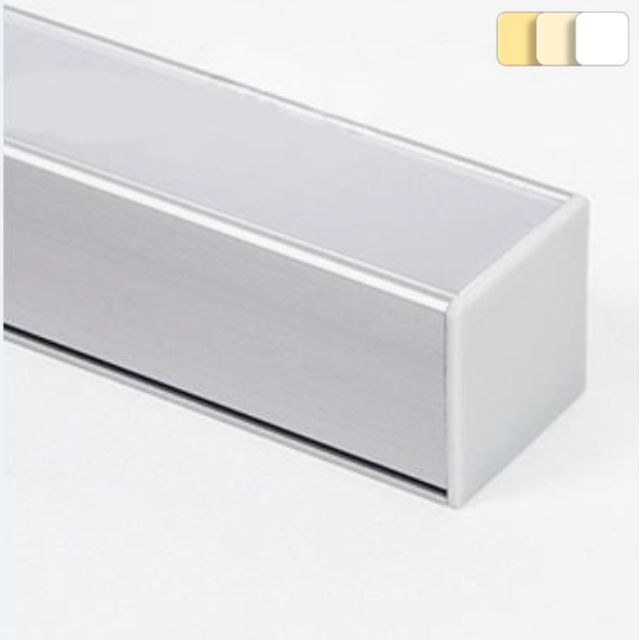

LED Strip Aluminium Frosty White Lumi'Ramp C H24W26 equipped with Power White (White LEDs) in an anodised aluminium profile with polyurethane waterproof encapsulation. Thanks to its tailor-made dimensions this ruler allows you to realize all your interior and exterior projects. Contact us to configure your custom-made strips.

57LED / meter - 16W

LED STRIP ALUMINIUM H24W26 – 16W Recessed

  • Dimensions : Section 24 * 26mm | Maximum length 3m
  • Number of LEDs: 57 LED/m
  • Power : 16W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 4000K
  • IRC : 80
  • luminous flux: 2200lm/m | 2300lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

70LED / meter - 20W

LED STRIP ALUMINIUM H24W26 – 20W Recessed

  • Dimensions : Section 24 * 26mm | Maximum length 3m
  • Number of LEDs: 70 LED/m
  • Power : 20W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 4000K
  • IRC : 80
  • luminous flux: 2600lm/m | 2900lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

240LED / meter - 20W

LED STRIP ALUMINIUM H24W26 – 20W Recessed

  • Dimensions : Section 24 * 26mm | Maximum length 3m
  • Number of LEDs: 240 LED/m
  • Power : 20W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 4000K
  • IRC : 80
  • luminous flux: 2050lm/m | 2500lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

Application

  • General lighting
  • Indoor lighting
  • Outdoor lighting
  • Architectural lighting
  • Retro lighting
  • Arrangement

Technical sheet

Technical sheet H24W26 White PDF

Date Sheet H24W26 White EN PDF
