LUMI RAMP C COLOR | H19W19 - Eccelectro

LUMI RAMP C COLOR | H19W19

✔ Dimensions: Section 19*19mm | Maximum length 3m
✔ Waterproofing: IP67
✔ Applications : general lighting, indoor, outdoor

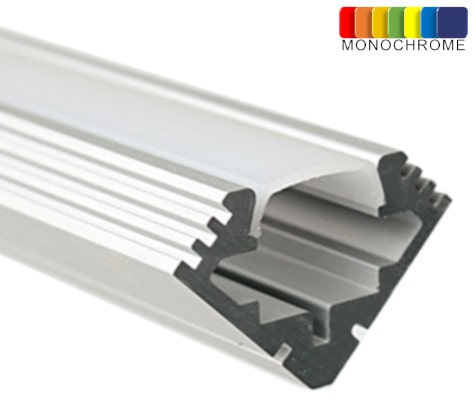

LED Strip Aluminium bespoke color Lumi’Ramp C H19W19 fitted with Lumi Color (Coloured LED) in an anodised aluminium profile with polyurethane waterproof encapsulation. Thanks to its tailor-made dimensions, this ruler can be used for all your indoor and outdoor projects. Contact us to configure your custom-made strips.

Request your quote

Categories: Architectural Lighting, Outdoor lighting, Indoor lighting, LED Strips Profiles

60LEDs / meter - 12W

Strip H19W19 – 12W Recessed

Dimensions : Section 19*19mm | Maximum length 3m
Number of LEDs: 60 LED/m
Power : 12W
Color: Red | Green | Blue | Amber
Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
IRC : 80
luminous flux: 50lm (red) | 80lm (green) | 20lm (blue) | 30lm (amber)
Gradable : Yes
Angle : 120°
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to 50°C
Tension: 24Vcc
Electric class: Class III
Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
IK: IK10
IP : IP67
Fixation : By stainless steel or composite clips
Glow wire test 850°C
Warranty: 3 years

120LEDs / meter - 8W

Strip H19W19 – 8W Recessed

Dimensions : Section 19*19mm | Maximum length 3m
Number of LEDs: 120 LED/m
Power : 8W
Color: Red | Green | Blue | Amber
Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
IRC : 80
luminous flux: 50lm (red) | 80lm (green) | 20lm (blue) | 30lm (amber)
Gradable : Yes
Angle : 120°
Lifespan: 50,000 hours L 70
Operational temperature: -20°C to 50°C
Tension: 24Vcc
Electric class: Class III
Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
IK: IK10
IP : IP67
Fixation : By stainless steel or composite clips
Glow wire test 850°C
Warranty: 3 years
