LUMI RAMP C WHITE | H19W19

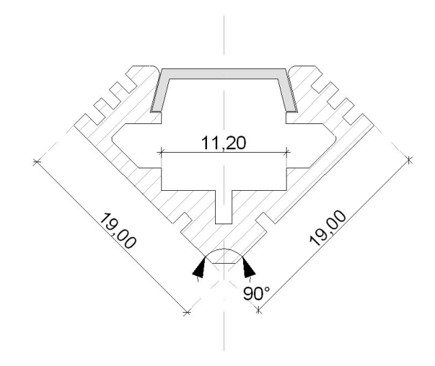

Dimensions: Section 19*19mm | Maximum length 3m
✔ Waterproofing: IP67
✔ Applications : general lighting, indoor, outdoor

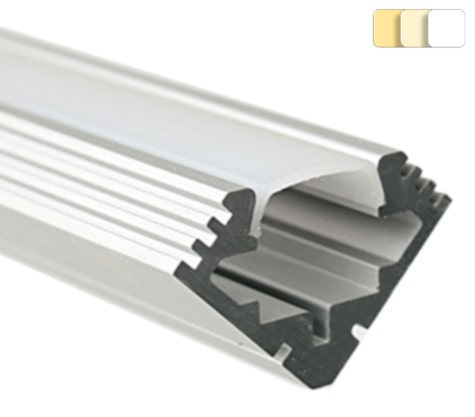

LED Strip Aluminium corner Lumi’Ramp C H19W19 equipped with Lumi White (White LEDs) in an anodised aluminium profile with polyurethane waterproof encapsulation. Thanks to its tailor-made dimensions this ruler allows you to realize all your interior and exterior projects. Contact us to configure your custom-made strips.

Request your quote

60LEDs / meter - 12W

Strip H19W19 – 12W Recessed

  • Dimensions : Section 19*19mm | Maximum length 3m
  • Number of LEDs: 60 LED/m
  • Power : 12W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 3000K | 4000K | 5000K
  • IRC : 80
  • luminous flux: 1000lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67

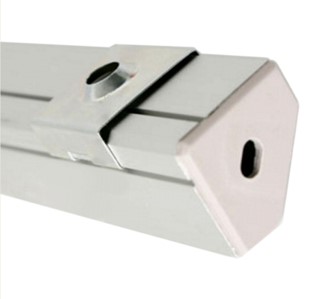

  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

120LEDs / meter - 8W

Strip H19W19 – 8W Recessed

  • Dimensions : Section 19*19mm | Maximum length 3m
  • Number of LEDs: 120 LED/m
  • Power : 8W
  • Body materials: Anodised aluminium profile with clear or diffusing PC cover. Anti-UV PU resin.
  • Color: White
  • Colour temperature (white) : 2700K | 3000K | 4000K | 5000K
  • IRC : 80
  • luminous flux: 350lm/m
  • Gradable : Yes
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20°C to 50°C
  • Tension: 24Vcc
  • Electric class: Class III
  • Connection: Cable HO5 RNF 2/4 wires*0,75mm2 1 meter long
  • IK: IK10
  • IP : IP67
  • Fixation : By stainless steel or composite clips
  • Glow wire test 850°C
  • Warranty: 3 years

Application

  • General lighting
  • Indoor lighting
  • Outdoor lighting
  • Architectural lighting
  • Retro lighting
  • Arrangement

Technical sheet

Fiche Technique H19W19 White (PDF)
Data sheet H19W19 White EN (PDF)
