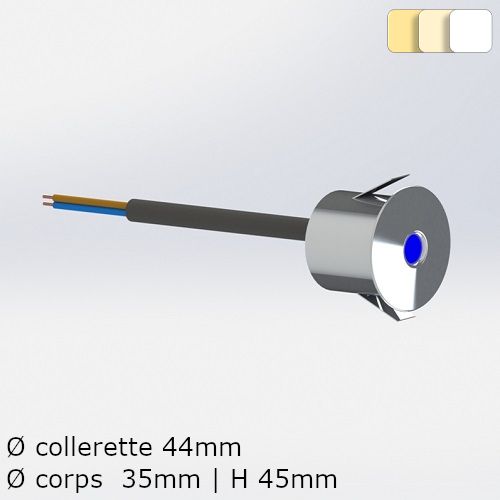

MINI STELLA LED BEACON WHITE

✔ Dimensions: Ø flange 44mm H45mm and Ø cylindrical body 35mm
✔ Power: 12-24V | 230v
✔ Applications: corridor, staircase, terrace markings...

The Stella Mini Recessed LED Beacon multi support for beaconing and lighting integrating a white Power LED in a waterproof aluminum body.

ACHIEVEMENTS :
Tennis club de Chabris
Terrazur Casino

Longchamp Racecourse

Request your quote

12-24V

STELLA 12-24V

  • Dimensions : Ø 44mm H45mm collar and cylindrical body ø 35mm
  • Number of LEDs: 1
  • Power : 2W
  • Body materials: Body in polished anodized aluminum or painted
  • Colors: Warm white | Cold white | Neutral white |
  • Color temperature: 2700K to 6000K
  • Lifespan: 50,000 hours L 70
  • Operational temperature: Maximum 50 ° C
  • Power supply: 12-24Vcc/ca
  • Electric class: Class III
  • Connection:HO7RNF cable
  • IK: IK10
  • IP : IP67
  • Fixation : Mounting by retaining clips
  • Compliance RoHS | EC | EN 60598-1
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

230V

STELLA 230V

  • Dimensions : Ø 44mm H45mm collar and cylindrical body ø 35mm
  • Number of LEDs: 1
  • Power : 2W
  • Body materials: Body in polished anodized aluminum or painted
  • Colors: Warm white | Cold white | Neutral white |
  • Color temperature: 2700K to 6000K
  • Lifespan: 50,000 hours L 70
  • Operational temperature: Maximum 50 ° C
  • Power supply: 230 Vca
  • Electric class: Class II
  • Connection:HO7RNF cable
  • IK: IK10
  • IP : IP67
  • Fixation : Mounting by retaining clips
  • Compliance RoHS | EC | EN 60598-1
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Hallway markup
• Markup of stairs
• Outdoor terrace markup

Technical sheet

Stella Mini LED Beacon Data Sheet (PDF)
Stella Technical Data sheet EN (PDF)
