SPOTLIGHT AEC 18 RGB

✔ Colors : RGB
Light beam : 10°| 20°| 35°| 50°| elliptical
✔ Applications: Architectural lighting, dynamics

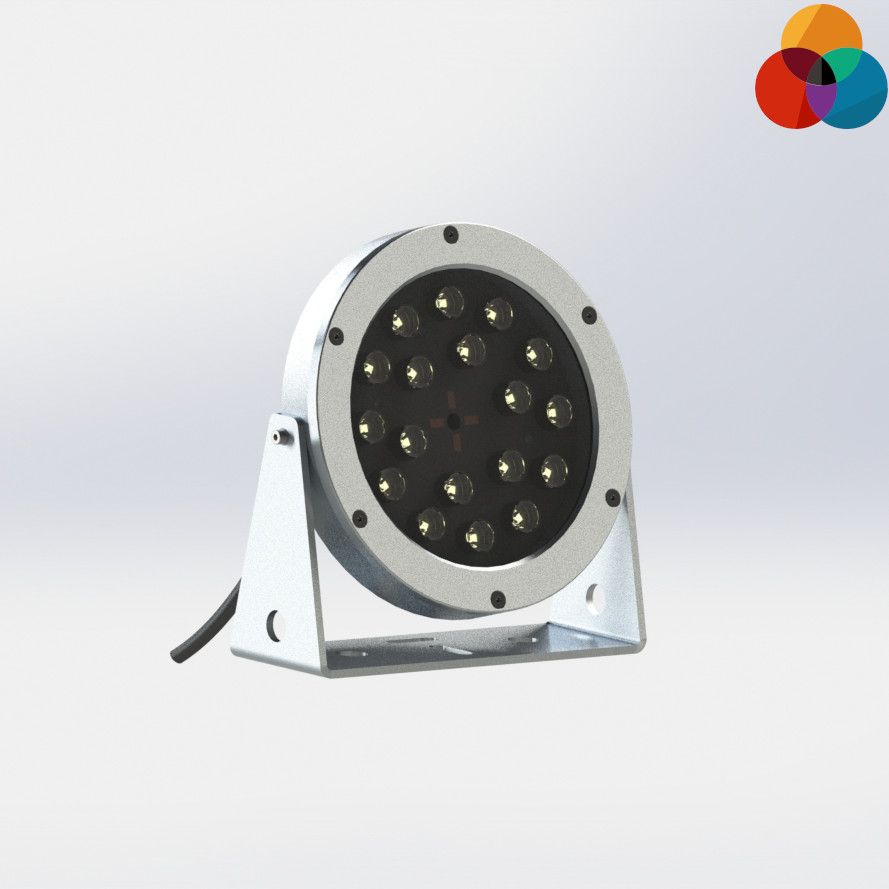

Architectural Projector Waterproof that integrates 18 Power LED RGB in an anodized aluminum body. With its specific optics, it provides extensive or intensive luminous flux depending on the application.

Achievements:
Museum Saint Laurent

Description

AEC 18 RGB Architectural Projector Spot LED

  • Dimensions : H98mm x ø181mm
  • Number of LEDs: 18
  • Power: 35W
  • Materials: Anodized aluminum body and polycarbonate glass
  • Color: RGB
  • Angle : 10°| 20°| 35°| 50°| elliptic
  • Lifespan: 50 000 hours
  • Operational temperature: -20°C to +45°C
  • Voltage: 24Vcc
  • Power: 500 or 700 mA
  • Optional gradation: DMX | PWM
  • Electric class: Class III
  • Connection: Cable L = 1m 4x1mm²
  • IK: IK10
  • IP : IP67
  • Fixation : 2 point anodised swivel aluminium mounting bracket
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• Architectural lighting
Dynamic lighting

Technical sheet

AEC 18 RGB Spot Data Sheet (PDF)
Data Sheet Spotlight AEC 18 RGB (PDF)
Plan Spot AEC 18 (PDF)
