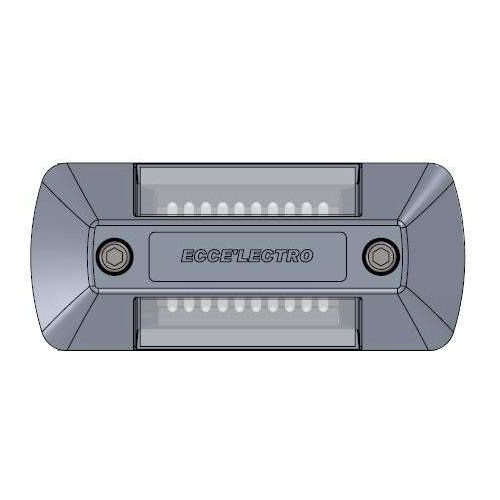

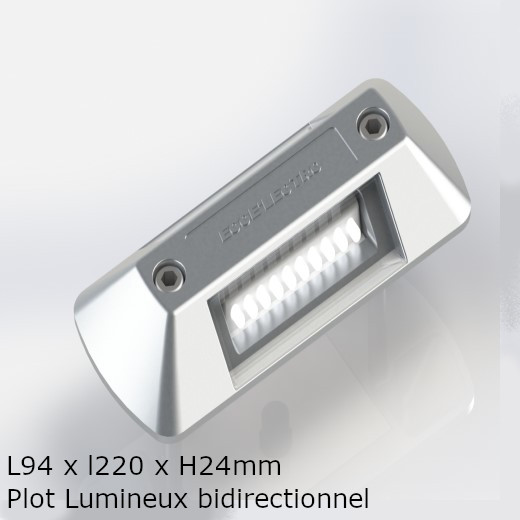

LED CAR PARK MARKER CELEST

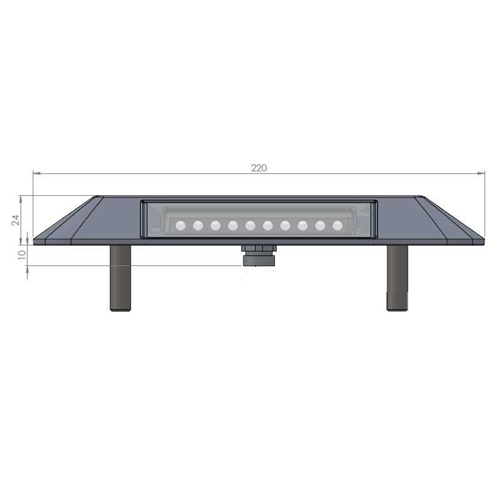

✔ Dimensions : L94 x l220 x H24mm
✔ Energy supply: 24Vcc / 48Vcc
✔ Application: LED Car Parks Marking, Bridge, Industrial environment

LED Road Marker bi-directional LED made of high-strength cast aluminium and shockproof polycarbonate to withstand the passage of vehicles.

See all our LED Beacons here.

Achievements:
Parking LPA St Exupéry

Categories: ,

2 x 12 LED

LED Car Park Marker CELEST

  • Dimensions : L94 x l220 x H24mm
  • Number of LEDs: 2*12
  • Power: 3W
  • Body materials: Soaked aluminum foundry
  • Glass materials: Polycarbonate 5mm
  • LED color: White | Blue | Red | Green | Amber
  • Angle : 15° | 30° | 50°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -30°C to 45°C
  • Power supply: 24Vcc | 48vcc
  • Electric class: Class III
  • Connection: Câble CR1C1 2*1mm² L=0.5m
  • IK: IK10 - Car rolling resistance 20km / h
  • IP : IP68
  • Fixation : Low-deep anti-snatch inguncing case
  • Compliance: APAVE NF-EN 60598-2-22 certified
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

2 x 24 LED

LED Car Park Marker CELESTINS

  • Dimensions : L94 x l220 x H24mm
  • Number of LEDs: 2*24
  • Power: 3W
  • Body materials: Soaked aluminum foundry
  • Glass materials: Polycarbonate 5mm
  • LED color: White | Blue | Red | Green | Amber
  • Angle : 15° | 30° | 50°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -30°C to 45°C
  • Power supply: 24Vcc | 48vcc
  • Electric class: Class III
  • Connection: Câble CR1C1 2*1mm² L=0.5m
  • IK: IK10 - Car rolling resistance 20km / h
  • IP : IP68
  • Fixation : Low-deep anti-snatch inguncing case
  • Compliance: APAVE NF-EN 60598-2-22 certified
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Marking parking
• Gateway Tagging
• Marking in industrial environment

Technical sheet

Celest Datasheet PDF
Celest Technical Datasheet AND PDF
Plan Celest PDF
Plan Celest 3D PDF (Download the file and open it with Adobe Reader to make it work)
Plan Boitier d’encastrement Celest
