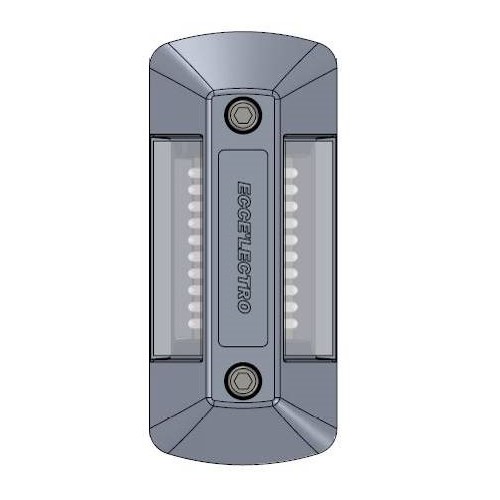

LED TUNNEL MARKER TUNELED

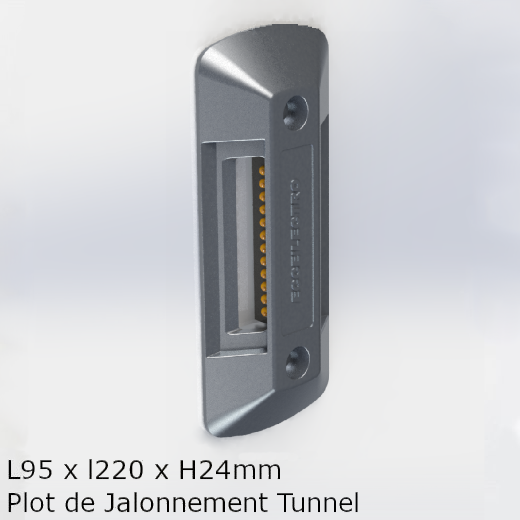

✔ Dimensions : L95 x l220 x H24 mm
✔ Energy supply: 24Vcc / 48Vcc
✔ Application: Tunnel Marking

LED Tunnel Marker IP68 waterproof LED with aluminium body designed to meet tunnel safety standards

See all our LED Beacons here.

Achievements:
Mont-Blanc tunnel
Tunnel Fluvial de Mauvages

Request your quote
Categories: ,

Description

LED Tunnel Marker LED tunnel staking pad

  • Dimensions : L95 x l220 x H24 mm
  • Center distance: 135mm
  • Number of LEDs: 2 * 12 or 2 * 24
  • Power : Max. 3W
  • Materials: aluminum foundry body with anticorrosion paint tempered glass porthole
  • LED colors: White | Red | Blue | Amber
  • Lifespan: 150,000 hours
  • Operational temperature:-20°C to +45°C
  • Voltage: 24Vcc/ca 48Vcc/ca
  • Electric class: Class III
  • IK: IK10
  • IP : IP68
  • Fixation : 2 CHC M8 stainless steel screws with insulating barrel
  • Connection: Cr1C1 cable 2x1.5mm² custom length (up to 20m)
  • Connector (optional): M12 polyamide central
  • Compliance : NF-EN 60598-2-22 APAVE certified
  • Incandescent wire test: 960°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• tunnels Tagging

Technical sheet

Fiche Technique Balise Tuneled (PDF)
Tuneled Technical Datasheet EN (PDF)
