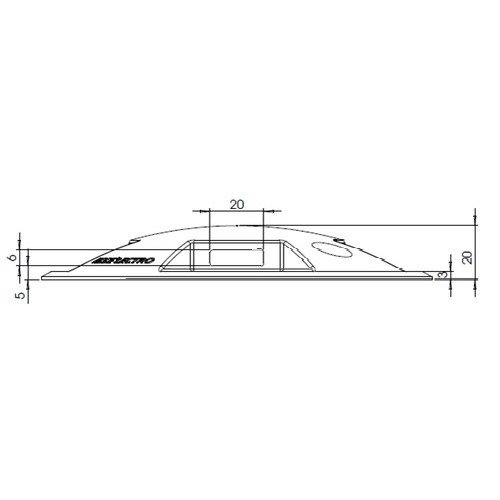

Eccelectro schéma balise Nova

LED ROAD MARKER NOVA

✔ Dimensions: Height 20mm and Ø 144mm
✔ Power supply: 24Vcc / 48Vcc / 230Vca
✔ Applications: LED Parking beacon, security lighting

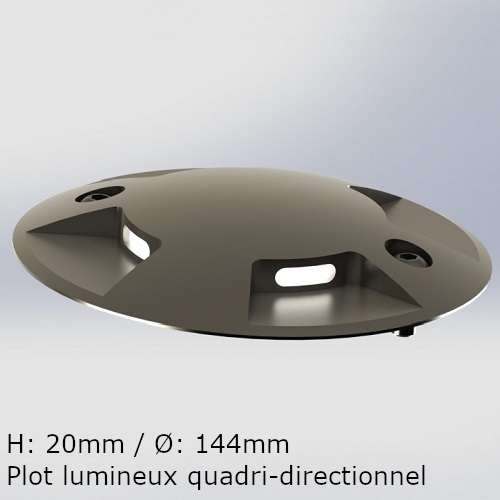

Ground LED Marker four-directional made of high resistance metal and shockproof polycarbonate to withstand the passage of vehicles. This ground beacon is used to provide security lighting for parking lots.

See all our LED Beacons here.

ACHIEVEMENTS :
• Car Park The Village Outlet
• Car Park shopping mall CAP 3000

Request your quote
Categories: ,

Description

LED Car Park Marker Nova Parking Ground LED Marker

  • Dimensions : Height 20mm and Ø 144mm
  • Number of LEDs: 4*3
  • Luminous flux: 45 lm (White LEDs)
  • Power : 1.2W
  • Body materials: 316L stainless steel and polycarbonate
  • LED colors: White / Blue / Green /
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -30°C to 45°C
  • Power supply: 24Vcc / 48Vcc / 230Vca
  • Electric class: Class II or III depending on model
  • Connection: Câble CR1C1 2*1mm² L=0.5m
  • IK: IK10
  • IP : IP68
  • Fixation : 2 m8 stainless steel screws and shallow steel recess box
  • Compliance : NF-EN 605598-2-22 an art. ERP PS22
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

  • Marking parking Kaufel BSL +
  • Safety lighting Kaufel BSL +
  • industrial markup Kaufel BSL +

BSL NOVA

Technical sheet

Nova Technical Sheet (PDF)
New Technical datasheet EN (PDF)
Plan Nova 3D (PDF) (Download the file and open it with Adobe Reader to make it work)
NOVA flush-mounting box plan (PDF)
Nova File (IES)
