ILLUMINATING PAVERS EDEN

✔ Color: Blue | Red | Green | White
✔ Power: 24Vcc
✔ Applications: Pedestrian road, pool edge...

Embedded luminous pavers stone in square or round glass illuminating its upper surface frosted on both sides, very decorative, it allows you to create luminous floors and walls.

EDEN CARRE

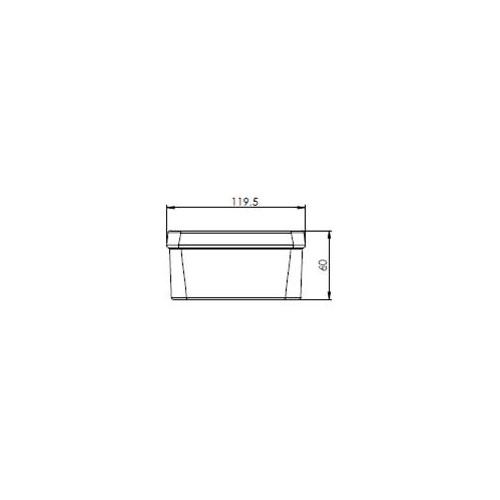

  • Dimensions : 120 x 120mm h60mm
  • Number of LEDs: 1
  • Power : 1.2W
  • Materials: Glass pavers
  • Colors: Blue | Red | Green | White
  • Color temperature: 3000K | 4000K | 6000K
  • Lifespan: 50,000 hours L 70
  • Operational temperature: Maximum +50°C
  • Power supply: 24Vcc
  • Dimming / Steering: PWM | DMX
  • Electric class: Class III
  • Connection: Câble H07RNF 2x1mm² de longeur 1m
  • IK: IK10
  • IP : IP67
  • Compliance : RoHS | CE
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

EDEN ROND

  • Dimensions : Ø120mm h60mm
  • Number of LEDs: 1
  • Power : 1.2W
  • Materials: Glass pavers
  • Colors: Blue | Red | Green | White
  • Color temperature: 3000K | 4000K | 6000K
  • Lifespan: 50,000 hours L 70
  • Operational temperature: Maximum +50°C
  • Power supply: 24Vcc
  • Dimming / Steering: PWM | DMX
  • Electric class: Class III
  • Connection: Câble H07RNF 2x1mm² de longeur 1m
  • IK: IK10
  • IP : IP67
  • Compliance : RoHS | CE
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Balisage d’allée piétonne
• Bordure de piscine
• Pavage de rue

Technical sheet

Fiche Technique Eden PDF

Eden technical Datasheet EN PDF
