380mm

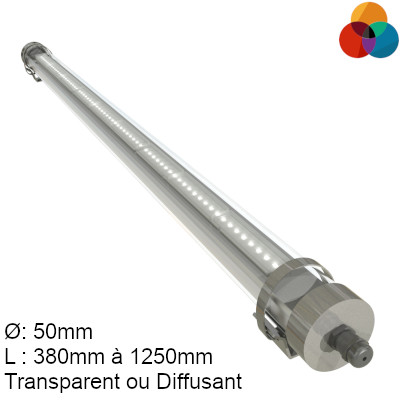

MINI BALDER RVB 24 Tubular
- Dimensions : 380mm
- Number of LEDs: 24
- Power: 8W
- Luminous flux transparent tube : Vert 120lm + Rouge 50lm + Bleu 33lm
- Luminous flux diffusing tube : Vert 72lm + Rouge 30lm + Bleu 20lm
- Diameter: 50mm
- Materials: Polycarbonate et inox
- Angle : 30° | 60° | 90°| 180° (diffusant)
- Lifespan: 50,000 hours L 70
- Operational temperature: -20 ° to + 40 ° C
- Voltage: 24Vcc
- Optional gradation: DMX | PWM
- Electric class: Class III
- Connection: Standard cable or CR1C1 in option
- IK: IK10
- IP : IP67
- Fixation : 2 attachment legs
- Types of fasteners: Standard | Mono point | Suspended
- Compliance: RoHS | CE | NF-EN 60598
- Incandescent wire test: 850°C
- Warranty: 3 years
- Manufacturing location: France
650mm
MINI BALDER RVB 48 Tubular
- Dimensions : 650mm
- Number of LEDs: 48
- Power: 16W
- Luminous flux transparent tube : Vert 240lm + Rouge 100lm + Bleu 66lm
- Luminous flux diffusing tube : Vert 144lm + Rouge 60lm + Bleu 40lm
- Diameter: 50mm
- Materials: Polycarbonate et inox
- Angle : 30° | 60° | 90°| 180° (diffusant)
- Lifespan: 50,000 hours L 70
- Operational temperature: -20 ° to + 40 ° C
- Voltage: 24Vcc
- Optional gradation: DMX | PWM
- Electric class: Class III
- Connection: Standard cable or CR1C1 in option
- IK: IK10
- IP : IP67
- Fixation : 2 attachment legs
- Types of fasteners: Standard | Mono point | Suspended
- Compliance: RoHS | CE | NF-EN 60598
- Incandescent wire test: 850°C
- Warranty: 3 years
- Manufacturing location: France
1000mm
MINI BALDER RVB 72 Tubular
- Dimensions : 1000mm
- Number of LEDs: 72
- Power: 24W
- Luminous flux transparent tube : Vert 360lm + Rouge 150lm + Bleu 100lm
- Luminous flux diffusing tube : Vert 216lm + Rouge 90lm + Bleu 60lm
- Diameter: 50mm
- Materials: Polycarbonate et inox
- Angle : 30° | 60° | 90°| 180° (diffusant)
- Lifespan: 50,000 hours L 70
- Operational temperature: -20 ° to + 40 ° C
- Voltage: 24Vcc
- Optional gradation: DMX | PWM
- Electric class: Class III
- Connection: Standard cable or CR1C1 in option
- IK: IK10
- IP : IP67
- Fixation : 2 attachment legs
- Types of fasteners: Standard | Mono point | Suspended
- Compliance: RoHS | CE | NF-EN 60598
- Incandescent wire test: 850°C
- Warranty: 3 years
- Manufacturing location: France
1250mm
MINI BALDER RVB 96 Tubular
- Dimensions : 1250mm
- Number of LEDs: 96
- Power: 32W
- Luminous flux transparent tube : Vert 480lm + Rouge 200lm + Bleu 133lm
- Luminous flux diffusing tube : Vert 288lm + Rouge 120lm + Bleu 80lm
- Diameter: 50mm
- Materials: Polycarbonate et inox
- Angle : 30° | 60° | 90°| 180° (diffusant)
- Lifespan: 50,000 hours L 70
- Operational temperature: -20 ° to + 40 ° C
- Voltage: 24Vcc
- Optional gradation: DMX | PWM
- Electric class: Class III
- Connection: Standard cable or CR1C1 in option
- IK: IK10
- IP : IP67
- Fixation : 2 attachment legs
- Types of fasteners: Standard | Mono point | Suspended
- Compliance: RoHS | CE | NF-EN 60598
- Incandescent wire test: 850°C
- Warranty: 3 years
- Manufacturing location: France
Application
Dynamic lighting
• Architectural lighting
