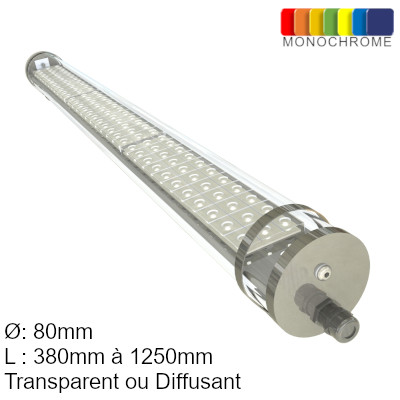

TUBULAR BALDER MAX COLOR

✔ Diameter: 80 mm
✔ Tube: Transparent or Diffusing
✔ Applications: Architectural lighting, security lighting

LED Tubulars monochrome diameter 80mm waterproof for architectural and security lighting. Balder MAX Color is a range of tubular luminaires with high luminous intensity colour LEDs made of polycarbonate and stainless steel for maximum resistance.

ACHIEVEMENTS:
Issue de secours Tunnel du Vuache

380mm

BALDER MAX COLOR 33 Tubulaire LED Monochrome couleur

  • Dimensions : 380mm
  • Number of LEDs: 33
  • Power: 17W
  • Luminous flux transparent tube : 1000lm (green), 450lm (red), 250lm (blue)
  • Flux Lumineux tube diffusant : 600lm (green) , 270lm (red), 150lm (blue)
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, red-orange, amber, green, green-yellow, blue, royal blue
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

650mm

BALDER MAX COLOR 66 Tubulaire LED Monochrome couleur

  • Dimensions : 650mm
  • Number of LEDs: 66
  • Power: 34W
  • Luminous flux transparent tube : 2000lm (vert), 900lm (rouge), 500lm (bleu)
  • Flux Lumineux tube diffusant : 1200lm (vert) , 540lm (rouge), 300lm (bleu)
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, red-orange, amber, green, green-yellow, blue, royal blue
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

1000mm

BALDER MAX COLOR 99 Tubulaire LED Monochrome couleur

  • Dimensions : 1000mm
  • Number of LEDs: 99
  • Power: 51W
  • Luminous flux transparent tube : 3000lm (vert), 1350lm (rouge), 750lm (bleu)
  • Flux Lumineux tube diffusant : 1800lm (vert) , 810lm (rouge), 450lm (bleu)
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, red-orange, amber, green, green-yellow, blue, royal blue
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

1250mm

BALDER MAX COLOR 132 Tubulaire LED Monochrome couleur

  • Dimensions : 1250mm
  • Number of LEDs: 132
  • Power: 58W
  • Luminous flux transparent tube : 4000lm (vert), 1800lm (rouge), 1000lm (bleu)
  • Flux Lumineux tube diffusant : 2400lm (vert) , 1080lm (rouge), 600lm (bleu)
  • Diameter: 80mm
  • Materials: Polycarbonate et inox
  • Color: red, red-orange, amber, green, green-yellow, blue, royal blue
  • Angle : 30° | 60° | 90° | 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 220Vca 50hertz
  • Optional gradation: DALI | DMX | 0-10 V
  • Electric class: Class II
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 stainless steel fastening legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• Architectural lighting
• Eclairage de sécurité
• Eclairage signalétique

Technical sheet

Fiche Technique Balder Max Color PDF

Data Sheet Balder Max Color PDF

Plan Balder Max Color PDF
