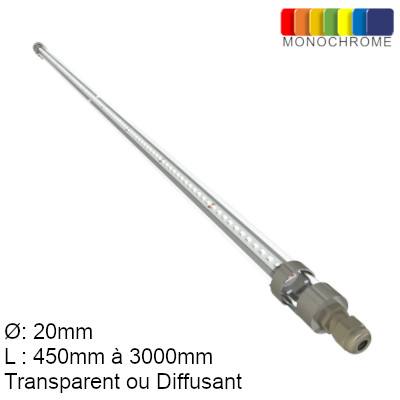

TUBULAR MICRO BALDER COLOR

✔ Diamètre : 20 mm
✔ Tube: Transparent or Diffusing
✔ Applications: Decorative Lighting, Retrolighting, Lighting

LED Tubular monochrome diamètre 20mm étanche pour l’éclairage architectural. Le Micro Balder Color est une gamme de luminaires tubulaires avec des LED de couleur haute intensité lumineuse réalisés en polycarbonate et inox pour une résistance maximum.

450mm

MICRO BALDER COLOR 48 LED Tubular

  • Dimensions : 450 mm
  • Number of LEDs: 48
  • Power: 4 W
  • Color: Red, Green, Blue, Amber
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 24Vcc
  • Optional gradation: Tension | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs

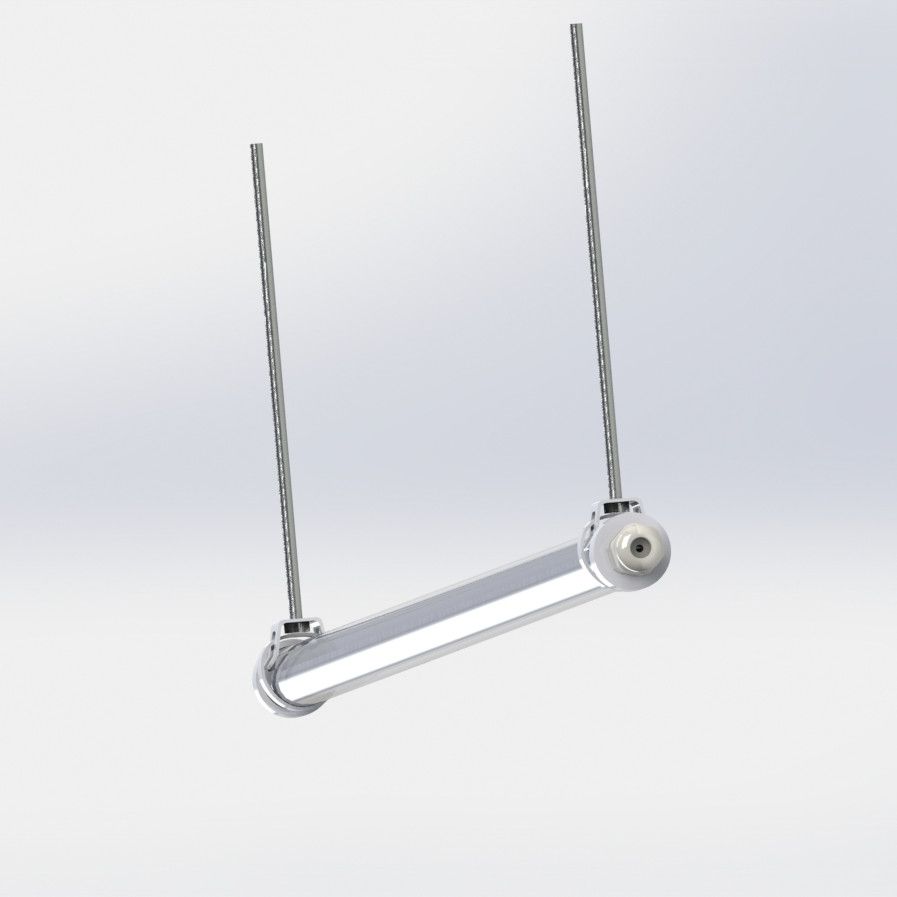

  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

950mm

MICRO BALDER COLOR 108 LED Tubular

  • Dimensions : 950 mm
  • Number of LEDs: 108
  • Power: 9 W
  • Color: Red, Green, Blue, Amber
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 24Vcc
  • Optional gradation: Tension | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1450mm

MICRO BALDER COLOR 168 LED Tubular

  • Dimensions : 1450 mm
  • Number of LEDs: 168
  • Power: 14 W
  • Color: Red, Green, Blue, Amber
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 24Vcc
  • Optional gradation: Tension | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1950mm

MICRO BALDER COLOR 228 LED Tubular

  • Dimensions : 1950 mm
  • Number of LEDs: 228
  • Power: 19 W
  • Color: Red, Green, Blue, Amber
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 24Vcc
  • Optional gradation: Tension | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Sur-Mesure (3m max)

MICRO BALDER COLOR Sur-mesure LED Tubular

  • Dimensions : 150 à 3000 mm
  • Number of LEDs: 120 LED/m
  • Power: 10 W/m
  • Color: Red, Green, Blue, Amber
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • Voltage: 24Vcc
  • Optional gradation: Tension | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP67
  • Fixation : 2 attachment legs
  • Types de fixations : Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years

Application

• Eclairage décoratif
• Rétro-éclairage
• Mise en lumière

Technical sheet

Fiche Technique Micro Balder Color PDF

Data Sheet Micro Balder Color PDF

Plan PDF
