SPOTLIGHT AEC 12 RGBW

✔ Colors : RGBW
Light beam : 10°| 20°| 35°| 50°| elliptical
✔ Applications: Architectural, Lighting

Architectural monochrome, RGB or RGBW waterproof floodlight Architectural waterproof that integrates 12 Power RGBW LEDs in an anodized aluminum body. With its specific optics, it delivers an extensive or intensive luminous flux depending on the application.

ACHIEVEMENTS:
Marseille-Provence Airport terraces
Technicentre SNCF Nevers

Request your quote

Description

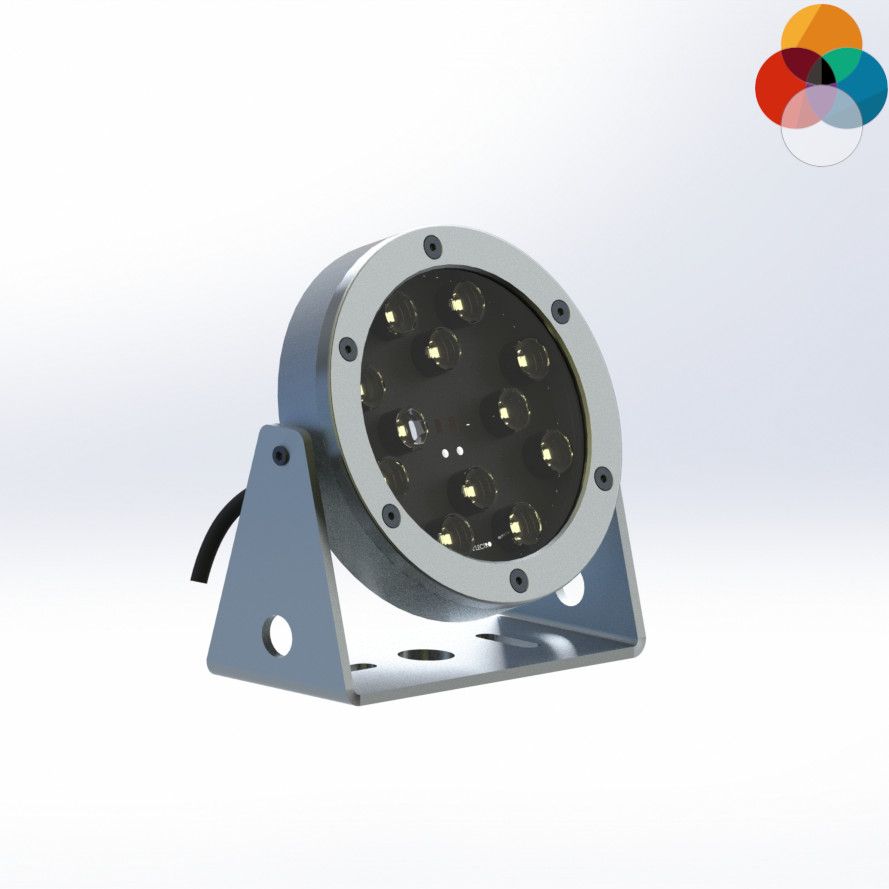

AEC 12 RGBW Architectural Projector Architectural monochrome, RGB or RGBW waterproof floodlight LED IP67

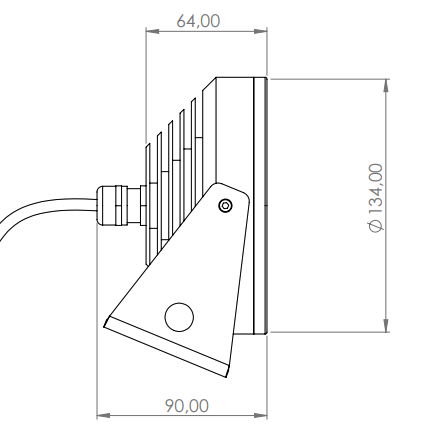

  • Dimensions : H90mm x ø134mm
  • Number of LEDs: 12
  • Power: 25W
  • Materials: Anodized aluminium body and polycarbonate glass
  • Color: RGBW
  • Angle : 10°| 20°| 35°| 50°| elliptic
  • Lifespan: 50 000 hours
  • Operational temperature: -20°C to +45°C
  • Voltage: 24Vcc
  • Power: 500 or 700 mA
  • Optional gradation: DMX | PWM
  • Electric class: Class III
  • Connection: Cable L = 1m 2x1mm²
  • IK: IK10
  • IP : IP67
  • Fixation : Anodised aluminium or stainless steel 2-point swivel mounting bracket
  • Compliance: CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• Architectural lighting
• Functional lighting

Technical sheet

Fiche Technique Spot AEC 12 RVBW (PDF)
Data Sheet Spotlight AEC 12 RGBW EN (PDF)
Plan Spot AEC 12 (PDF)
