SPOTLIGHT AEC 18 MONOCHROME

luminous flux: 4700 lumens (White)
✔ Rayon lumineux : 10°| 20°| 35°| 50°| elliptic
✔ Applications: Architectural, Lighting

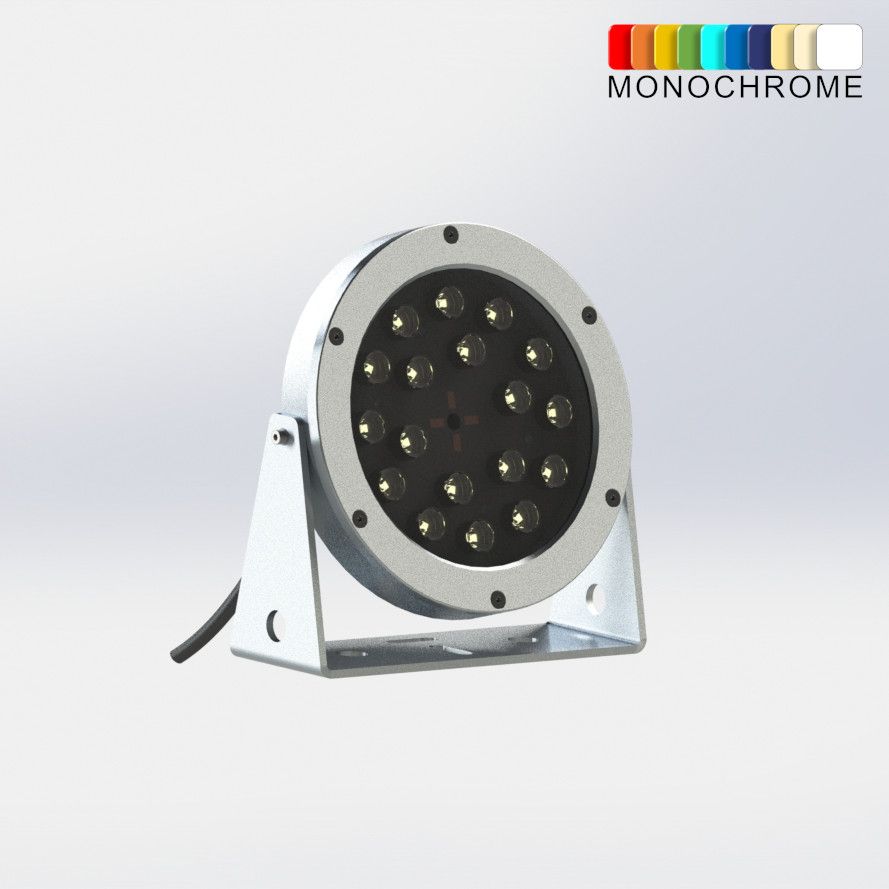

Spotlight Waterproof monochrome architectural LED that integrates 18 Power LEDs in an anodized aluminum body. With its specific optics, it provides extensive or intensive luminous flux depending on the application.

Achievements:
Museum Saint Laurent

Request your quote

Description

Projecteur Architectural AEC 18 Monochrome LED architectural

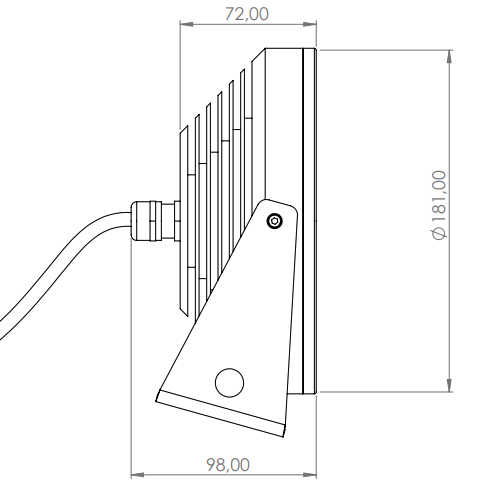

  • Dimensions : H98 mm x ø181 mm
  • Number of LEDs: 18
  • Power: 35W
  • luminous flux: 4700 lumens (White)
  • Materials: Anodized aluminum body and polycarbonate glass
  • Color: White | Blue | Red | Green | ...
  • Angle : 10°| 20°| 35°| 50°| elliptic
  • Lifespan: 50 000 hours
  • Operational temperature: -20°C to +45°C
  • Voltage: 24Vcc
  • Power: 500 or 700 mA
  • Optional gradation: DMX | PWM
  • Electric class: Class III
  • Connection: Câble L = 1m 4x1mm²
  • IK: IK10
  • IP : IP67
  • Fixation : 2 point anodised swivel aluminium mounting bracket
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

Architectural LED lighting
Dynamic lighting

Technical sheet

Fiche Technique Spot AEC 18 Mono (PDF)
Data Sheet Spotlight AEC 18 Mono EN (PDF)
Plan Spot AEC 18 (PDF)
Fichier IES Projecteur AEC 18
