✔ Dimensions : 12cm, 30cm, 50cm, 100cm | section 45*55 mm
✔ Waterproofing: IP65
✔ Applications: wallwasher, window frame lighting, high bay lighting...

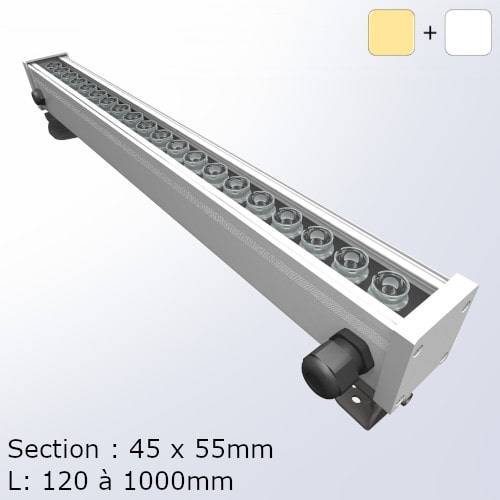

Linear Wallwasher made of anodized or lacquered aluminum and anti-UV polycarbonate to resist shock and weather. Very compact linear luminaire with integrated or remote power supply for architectural enhancement.
Large choice of optics for remarkable homogeneity. Variable color temperature from 2700K to 7000K.

Paris Defense Arena
Deauville Racecourse

Request your quote


Linéaire Wallwasher Power Ramp LED Professional Lighting Architectural lighting

  • Dimensions : Lg. 120mm(4LED), 300mm(12LED), 500mm(20LED), 1000mm(40LED) | section 45*55 mm
  • Number of LEDs: 4 to 40 LEDs
  • Power : 10W to 72W
  • Body materials: Body in aluminium anodized or lacquered paint anti corrosion
  • Glass materials: Glass flush clear anti UV polycarbonate
  • Color: Warm white, natural white and cool white
  • Color temperature: 2700K to 6500K
  • Symmetrical beam: 8° | 2*5°| 20°| 35°| 50°
  • Elliptical beam: 15°*50°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: Maximum 50 ° C
  • Power supply: 24V | 220Vca
  • Dimming / Steering: DMX addressable auto available
  • Electric class: Class III and class II according to model
  • Connection: Built-in power with electronic surge protection, double fast connectors for wiring through. Cable 2x0.75mm² | 4x0.75mm² | 5x0.75mm² and double PE polyamide Entry/Exit
  • IK: IK10
  • IP : IP65
  • Fixation : Laying on fixed or adjustable foot with locking screw
  • Compliance RoHS | EC | EN 60598-1
  • Glow wire test 850°C
  • Warranty: 5 years
  • Manufacturing location: France


• Hallway markup
• Markup of stairs
• Outdoor terrace markup

Technical sheet

Fiche Technique Wallwasher PDF
Wallwasher technical Data Sheet EN PDF
Plan Power Ramp Evo PDF
Plan Power Ramp Evo 3D PDF(Download the file and open it with Adobe Reader to make it work)
