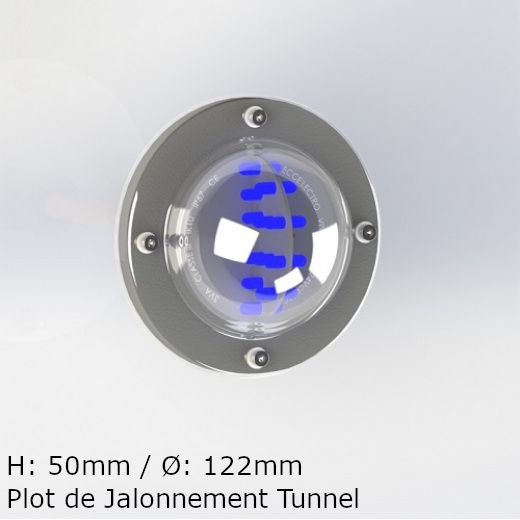

LED TUNNEL MARKER VISION T

✔ Dimensions: Ø122mm and 50mm height
✔ Power supply: 24Vdc / ac | 48Vdc / ca | 230Vac
✔ Application: Tunnel Marking

LED Tunnel Marker waterproof IP67 for the safety marking of road and motorway tunnels. These LED Markers indicate the safety distance to be respected by motorists.

See all our LED Beacons here.

Achievements:
Tunnels Highway A89
Tunnel of the Roman Borne

Request your quote
Categories: ,

VISION T 24 Vcc/ca

  • Dimensions : Ø122mm and 50mm height
  • Number of LEDs: 2*12
  • Power: 0, 7W
  • Body materials: Body made of uv-anti polycarbonate 850C M1 and stainless steel
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 24 or 48Vcc
  • Electric class: Class III
  • Connection: Cr1C1 cable 2x1.5mm2 custom length (up to 20m) optional
  • IK: IK10
  • IP : IP67
  • Fixation : Mounting plate Stainless steel 316L M0 or composite M1 optional
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

VISION T 48 Vcc/ca

  • Dimensions : Ø122mm and 50mm height
  • Number of LEDs: 2*12
  • Power: 1,5W
  • Body materials: Body made of uv-anti polycarbonate 850C M1 and stainless steel
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 24 or 48Vcc
  • Electric class: Class III
  • Connection: Cr1C1 cable 2x1.5mm2 custom length (up to 20m) optional
  • IK: IK10
  • IP : IP67
  • Fixation : Mounting plate Stainless steel 316L M0 or composite M1 optional
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

VISION T 230Vca

  • Dimensions : Ø122mm and 50mm height
  • Number of LEDs: 2*12
  • Power: 1W
  • Body materials: Body made of uv-anti polycarbonate 850C M1 and stainless steel
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 230Vca
  • Electric class: Class II
  • Connection: Cr1C1 cable 2x1.5mm2 custom length (up to 20m) optional
  • IK: IK10
  • IP : IP67
  • Fixation : Mounting plate Stainless steel 316L M0 or composite M1 optional
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• tunnels Tagging

Technical sheet

Vision T Technical Sheet (PDF)
Vision T Technical Datasheet EN (PDF)

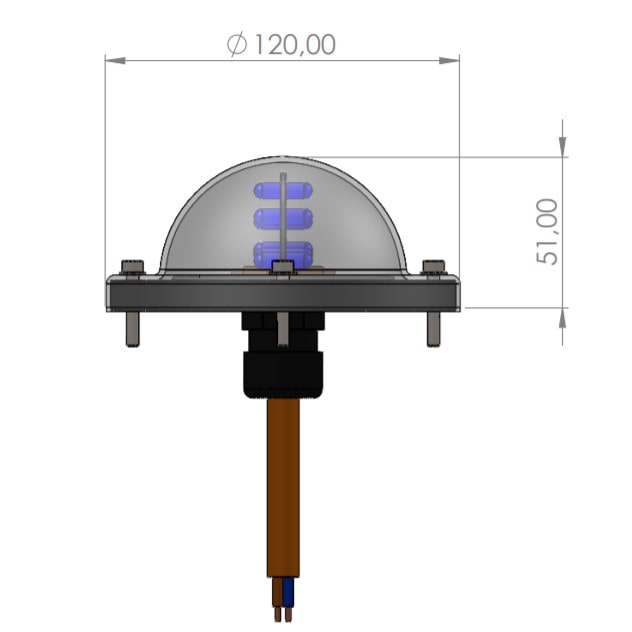

Plan Vision T (PDF)
Plan Vision T 3D (PDF) (Download the file and open it with Adobe Reader to make it work)
