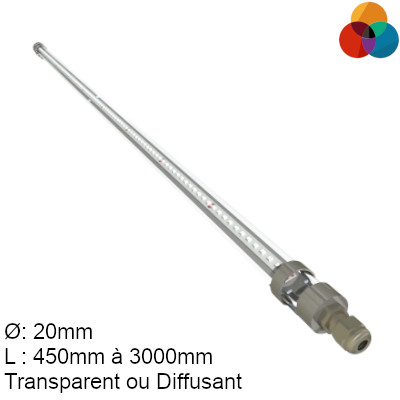

TUBULAR MICRO BALDER RGB

✔ Diameter: 20 mm
✔ Tube: Transparent or Diffusing
✔ Applications: Architectural Lighting, Dynamic Lighting, Lighting

Tubular LED luminaire 20mm waterproof diameter for architectural and dynamic lighting. Micro Balder RVB is a range of color-variation tubular fixtures compatible with Color Pack Evo with high light intensity made of polycarbonate and stainless steel for maximum strength.

See all our LED Tubulars here.

ACHIEVEMENTS:
Flaine Cable car

Palais des Sports Pierre -Coulon

450mm

MICRO BALDER RVB 24 Tubular

  • Dimensions : 450mm
  • Number of LEDs: 24
  • Power: 6W
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color: Red + Green + Blue
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • Voltage: 24Vcc
  • Optional gradation: PWM DMX (avec Color Pack Evo)
  • Electric class: Class III
  • Connection: Cable 4 x 0.75mm²
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

950mm

MICRO BALDER RVB 54 Tubular

  • Dimensions : 950mm
  • Number of LEDs: 54
  • Power: 13,5W
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color: Red + Green + Blue
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • Voltage: 24Vcc
  • Optional gradation: PWM DMX (avec Color Pack Evo)
  • Electric class: Class III
  • Connection: Cable 4 x 0.75mm²
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1450mm

MICRO BALDER RVB 84 Tubular

  • Dimensions : 1450mm
  • Number of LEDs: 84
  • Power: 21 W
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color: Red + Green + Blue
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • Voltage: 24Vcc
  • Optional gradation: PWM DMX (avec Color Pack Evo)
  • Electric class: Class III
  • Connection: Cable 4 x 0.75mm²
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1950mm

MICRO BALDER RVB 114 Tubular

  • Dimensions : 1950mm
  • Number of LEDs: 114
  • Power: 29 W
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color: Red + Green + Blue
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • Voltage: 24Vcc
  • Optional gradation: PWM DMX (avec Color Pack Evo)
  • Electric class: Class III
  • Connection: Cable 4 x 0.75mm²
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Custom-made (3m max)

MICRO BALDER Custom RGB Tubular

  • Dimensions : 150 à 3000 mm
  • Number of LEDs: 60 LED/m
  • Power: 15 W/m
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color: Red + Green + Blue
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20 ° to + 40 ° C
  • Voltage: 24Vcc
  • Optional gradation: PWM DMX (avec Color Pack Evo)
  • Electric class: Class III
  • Connection: Cable 4 x 0.75mm²
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types of fasteners: Standard | Mono point | Suspended
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Architectural lighting
Dynamic lighting
• Highlighted

Technical sheet

Micro Balder RGB Data Sheet PDF

Data Sheet Micro Balder RGB PDF

Plan PDF
