PROJECTEUR AEC 4 RVBW - Eccelectro

SPOTLIGHT AEC 4 RGBW

✔ Colors : RGBW
✔ Light ray: 10°| 20°| 35°| 50°| elliptic
✔ Applications: Architectural, Lighting

Spotlight Architectural LED RGBW Waterproof exterior that integrates 4 Power LEDs in an anodized aluminum body. With its specific optics, it delivers an extensive or intensive monochromatic luminous flux depending on the application.

Achievements:
• Terrace Airport Marseille-Provence
• Technicentre SNCF Nevers

Request your quote

Description

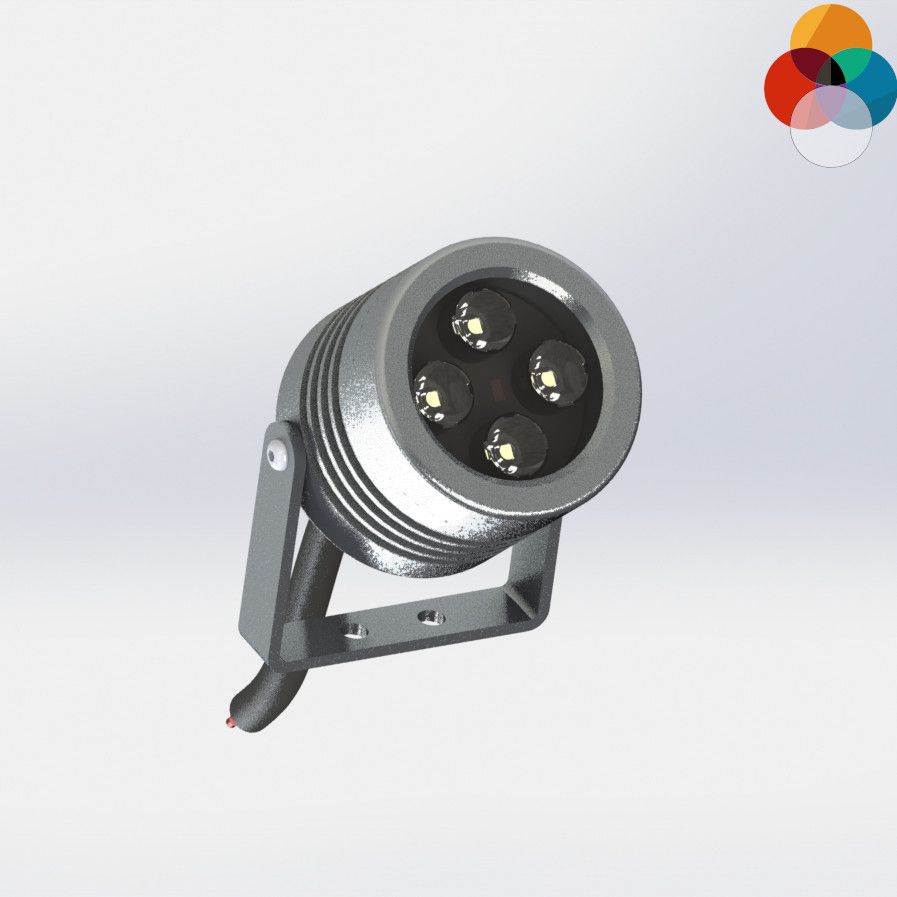

AEC 4 RGBW Architectural Projector Spot 4 power LED RGBW

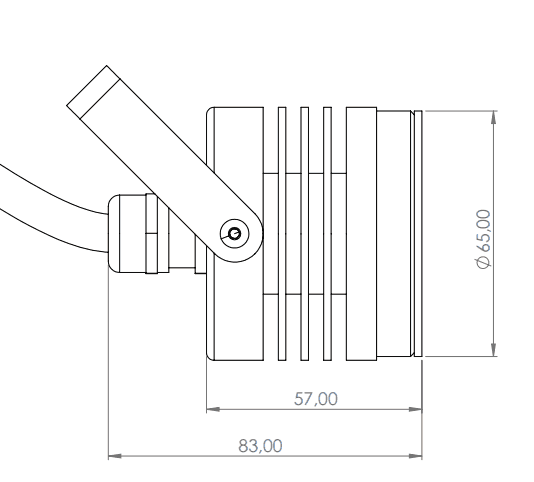

Dimensions : H57mmx ø65mm
Number of LEDs: 4
Power: 8W
Materials: Anodized aluminium body and polycarbonate glass
Color: RGBW
Angle : 10°| 20°| 35°| 50°| elliptic
Lifespan: 50 000 hours
Operational temperature: -20°C to +45°C
Voltage: 24Vcc
Power: 500 or 700 mA
Optional gradation: DMX | PWM
Electric class: Class III
Connection: Cable L = 1m 2x1mm²
IRC : 80
IK: IK10
IP : IP67
Fixation : Anodised aluminium or stainless steel 2-point swivel mounting bracket
Compliance: CE | NF-EN 60598
Incandescent wire test: 850°C
Warranty: 5 years
Manufacturing location: France
