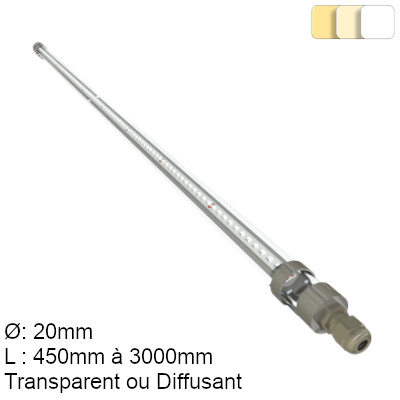

TUBULAR MICRO BALDER

✔ Diamètre : 20 mm
✔ Tube: Transparent or Diffusing
✔ Applications: Ledge Lighting, Store Lighting, Technical Area Lighting

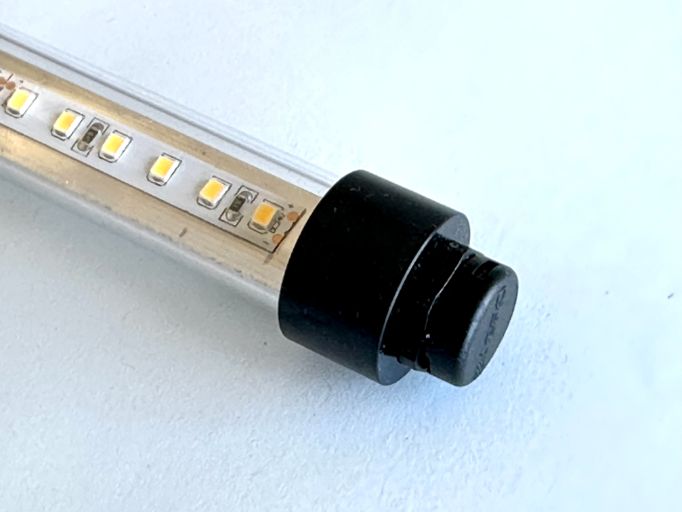

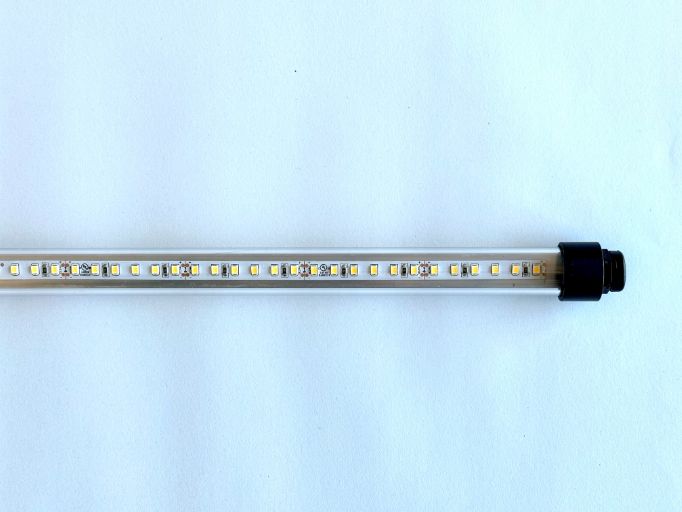

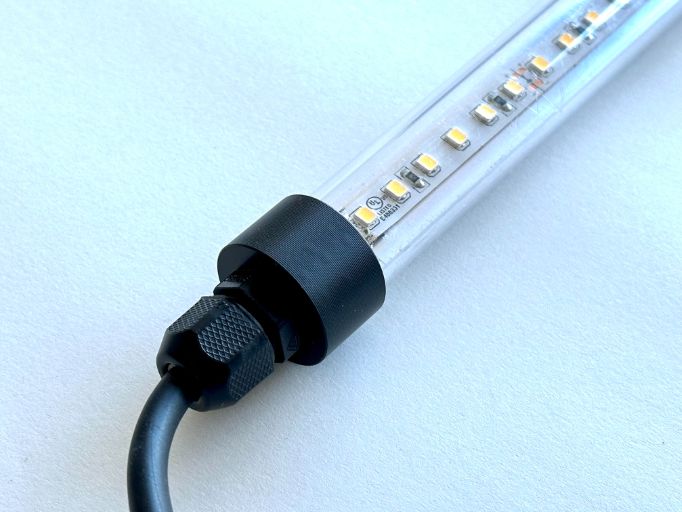

LED Tubular diameter 20mm waterproof for general and technical lighting. Micro Balder is a range of professional LED tubes with very small dimensions and high luminous intensity made of polycarbonate and stainless steel for maximum resistance.

450mm

MICRO BALDER 48 LED Tubular

  • Dimensions : 450mm
  • Number of LEDs: 48
  • Power: 4W
  • Luminous flux transparent tube : 360lm
  • Luminous flux diffusing tube : 216lm
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 2700K | 3000K | 4000K | 5000K | 6000K
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 24Vcc
  • Optional gradation: TENSION | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types de fixations : Mono point | Suspendu
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

950mm

MICRO BALDER 108LED Tubular

  • Dimensions : 950mm
  • Number of LEDs: 108
  • Power: 9W
  • Luminous flux transparent tube : 800lm
  • Luminous flux diffusing tube : 480lm
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 2700K | 3000K | 4000K | 5000K | 6000K
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 24Vcc
  • Optional gradation: TENSION | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types de fixations : Mono point | Suspendu
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1450mm

MICRO BALDER 168 LED Tubular

  • Dimensions : 1450mm
  • Number of LEDs: 168
  • Power: 14W
  • Luminous flux transparent tube : 1260lm
  • Luminous flux diffusing tube : 756lm
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 2700K | 3000K | 4000K | 5000K | 6000K
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 24Vcc
  • Optional gradation: TENSION | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types de fixations : Mono point | Suspendu
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

1950mm

MICRO BALDER 228 LED Tubular

  • Dimensions : 1950mm
  • Number of LEDs: 228
  • Power: 19W
  • Luminous flux transparent tube : 1710lm
  • Luminous flux diffusing tube : 216lm
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 2700K | 3000K | 4000K | 5000K | 6000K
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 24Vcc
  • Optional gradation: TENSION | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types de fixations : Mono point | Suspendu
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Sur-Mesure (3m max)

MICRO BALDER Sur-Mesure LED Tubular

  • Dimensions : de 150 à 3000 mm (modulo 5cm)
  • Number of LEDs: 120 LED/m
  • Power: 10 W/m
  • Luminous flux transparent tube : 900 lm/m
  • Luminous flux diffusing tube : 540 lm/m
  • Diameter: 20mm
  • Materials: Polycarbonate and stainless steel optional
  • Color temperature: 2700K | 3000K | 4000K | 5000K | 6000K
  • Angle : 120°
  • Lifespan: 50,000 hours L 70
  • Operational temperature: -20° à +40°C
  • IRC : > 80 et > 90 en option
  • Voltage: 24Vcc
  • Optional gradation: TENSION | PWM DMX
  • Electric class: Class III
  • Connection: Standard cable or CR1C1 in option
  • IK: IK10
  • IP : IP65
  • Fixation : 2 attachment legs
  • Types de fixations : Mono point | Suspendu
  • Compliance: RoHS | CE | NF-EN 60598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• Eclairage intérieur (magasin, mobilier…)
• Eclairage indirect (corniche, rétro-éclairage)
• Eclairage des zones techniques (faible encombrement)

Technical sheet

Fiche Technique Micro Balder PDF

Data Sheet Micro Balder PDF

Plan PDF
