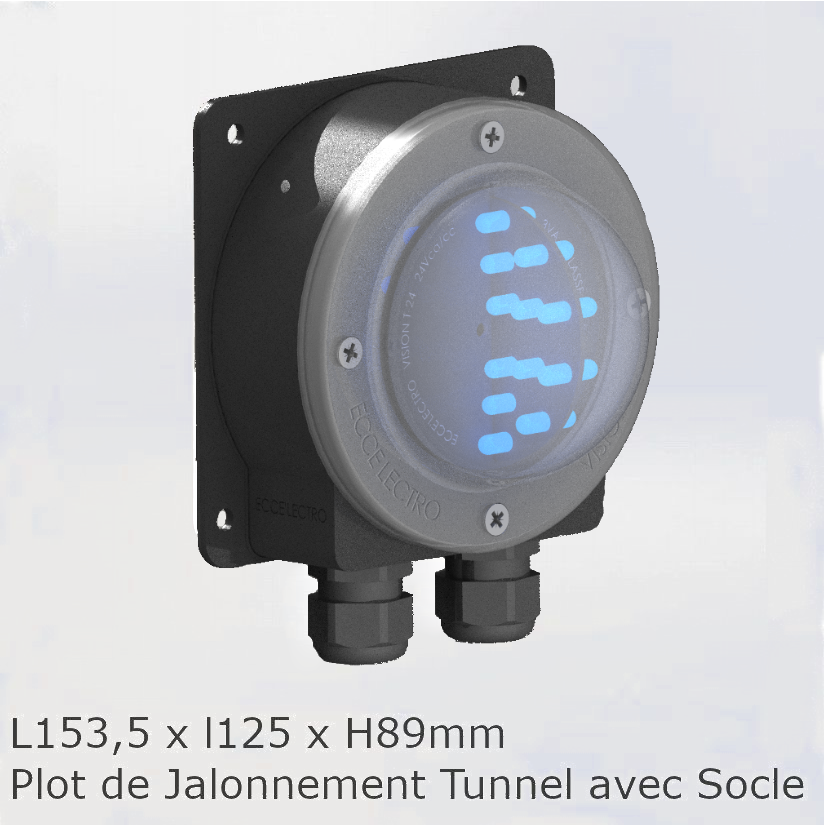

LED TUNNEL MARKER VISION T PLINTH

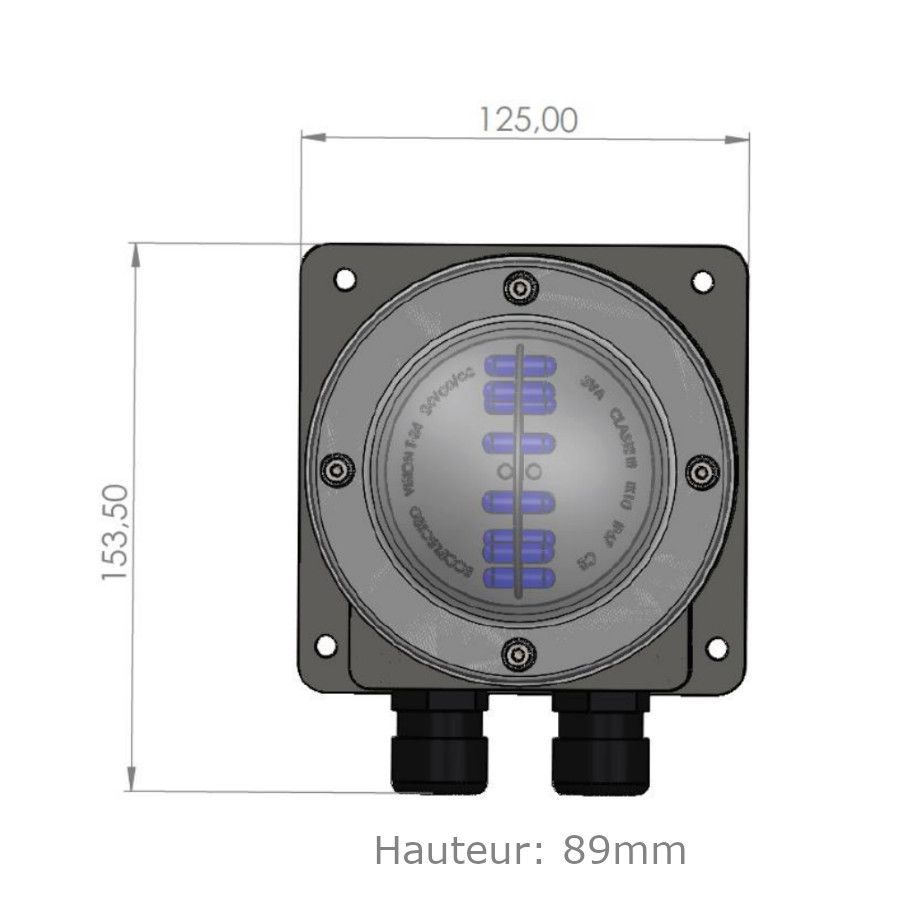

✔ Dimensions : L153,5 x l125 x H89mm
✔ Power supply: 24Vdc / ac | 48Vdc / ca | 230Vac
✔ Application: Tunnel Marking

LED Tunnel Marker with waterproof plinth IP67 for the safety marking of road and motorway tunnels. These LED Markers with a junction box indicate the safety distance to be respected by motorists.

See all our LED Beacons here.

Achievements:
Hal Brussels Gate Tunnel

Request your quote
Categories: ,

VISION T 24 Vcc/ca

  • Dimensions : L153,5 x l125 x H89mm
  • Number of LEDs: 2*12
  • Power: 0,7 W
  • Body materials: Body made of uv-anti polycarbonate 850C M1 and stainless steel
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 24 or 48Vcc
  • Electric class: Class III
  • Connection: Cr1C1 cable 2x1.5mm2 custom length (up to 20m) optional
  • IK: IK10
  • IP : IP67
  • Fixation : 4 emplacements pour vis
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

VISION T 48 Vcc/ca

  • Dimensions : L153,5 x l125 x H89mm
  • Number of LEDs: 2*12
  • Power: 1,5W
  • Body materials: Body made of uv-anti polycarbonate 850C M1 and stainless steel
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 24 or 48Vcc
  • Electric class: Class III
  • Connection: Cr1C1 cable 2x1.5mm2 custom length (up to 20m) optional
  • IK: IK10
  • IP : IP67
  • Fixation : 4 emplacements pour vis
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

VISION T 230Vca

  • Dimensions : L153,5 x l125 x H89mm
  • Number of LEDs: 2*12
  • Power: 0, 5W
  • Body materials: Body made of uv-anti polycarbonate 850C M1 and stainless steel
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 230Vca
  • Electric class: Class II
  • Connection: Cr1C1 cable 2x1.5mm2 custom length (up to 20m) optional
  • IK: IK10
  • IP : IP67
  • Fixation : Mounting plate Stainless steel 316L M0 or composite M1 optional
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 3 years
  • Manufacturing location: France

Application

• tunnels Tagging

Technical sheet

Fiche Technique Vision T embase (PDF)
Vision T Embase Technical Datasheet EN (PDF)
Plan Vision T embase (PDF)
Plan Vision T 3D (PDF) (Download the file and open it with Adobe Reader to make it work)
