BALISE TUNNEL VISION T EMBASE PE ARRIERE

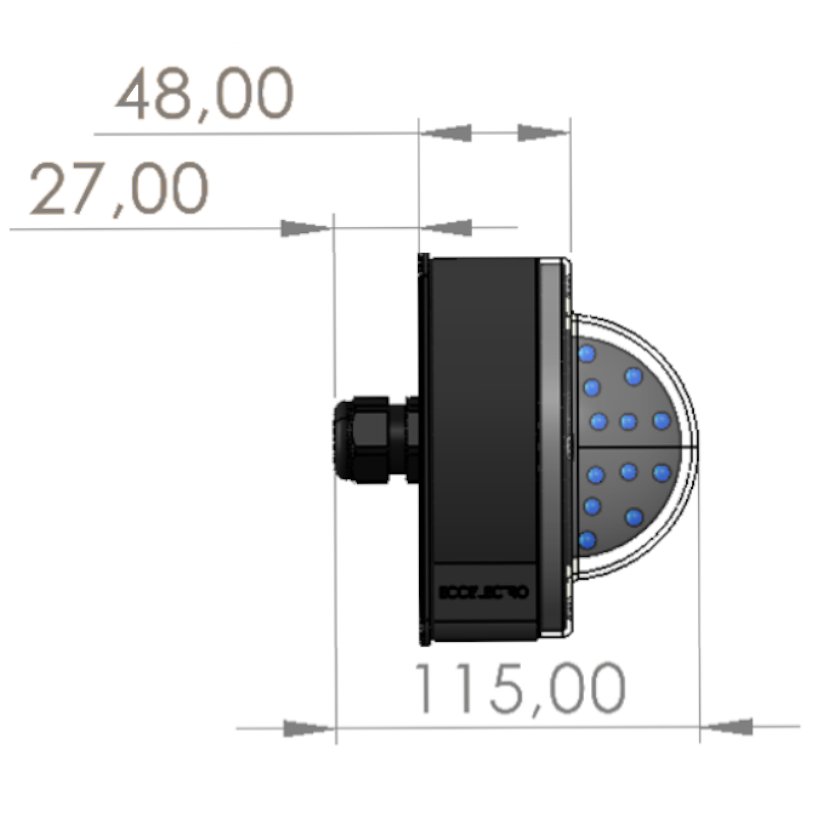

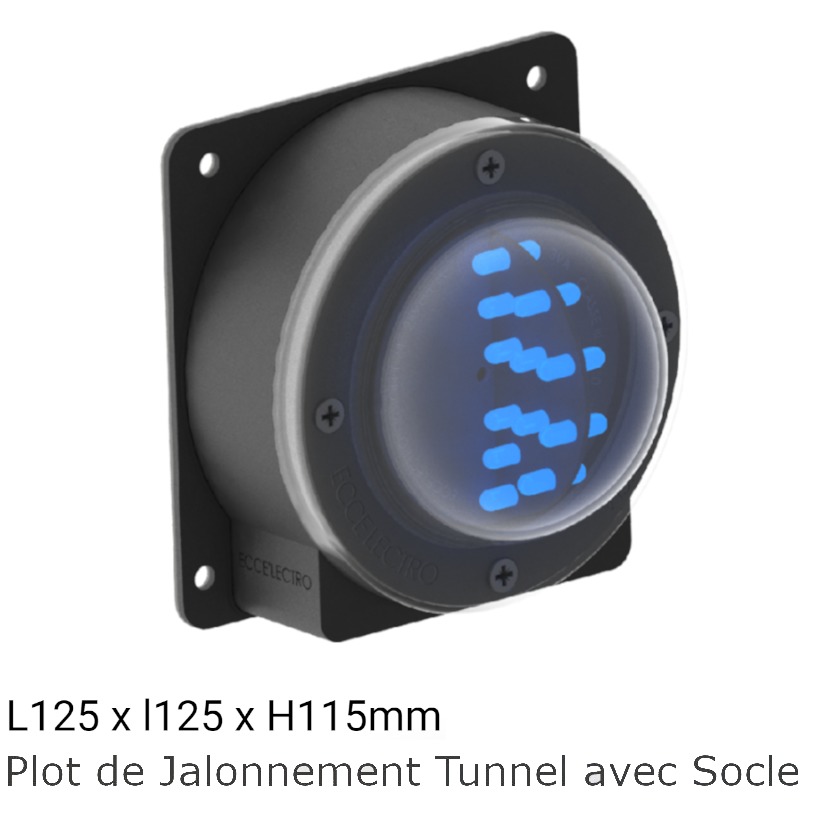

✔ Dimensions : L125,5 x l125 x H115mm
✔ Power supply: 24Vdc / ac | 48Vdc / ca | 230Vac
✔ Application: Tunnel Marking

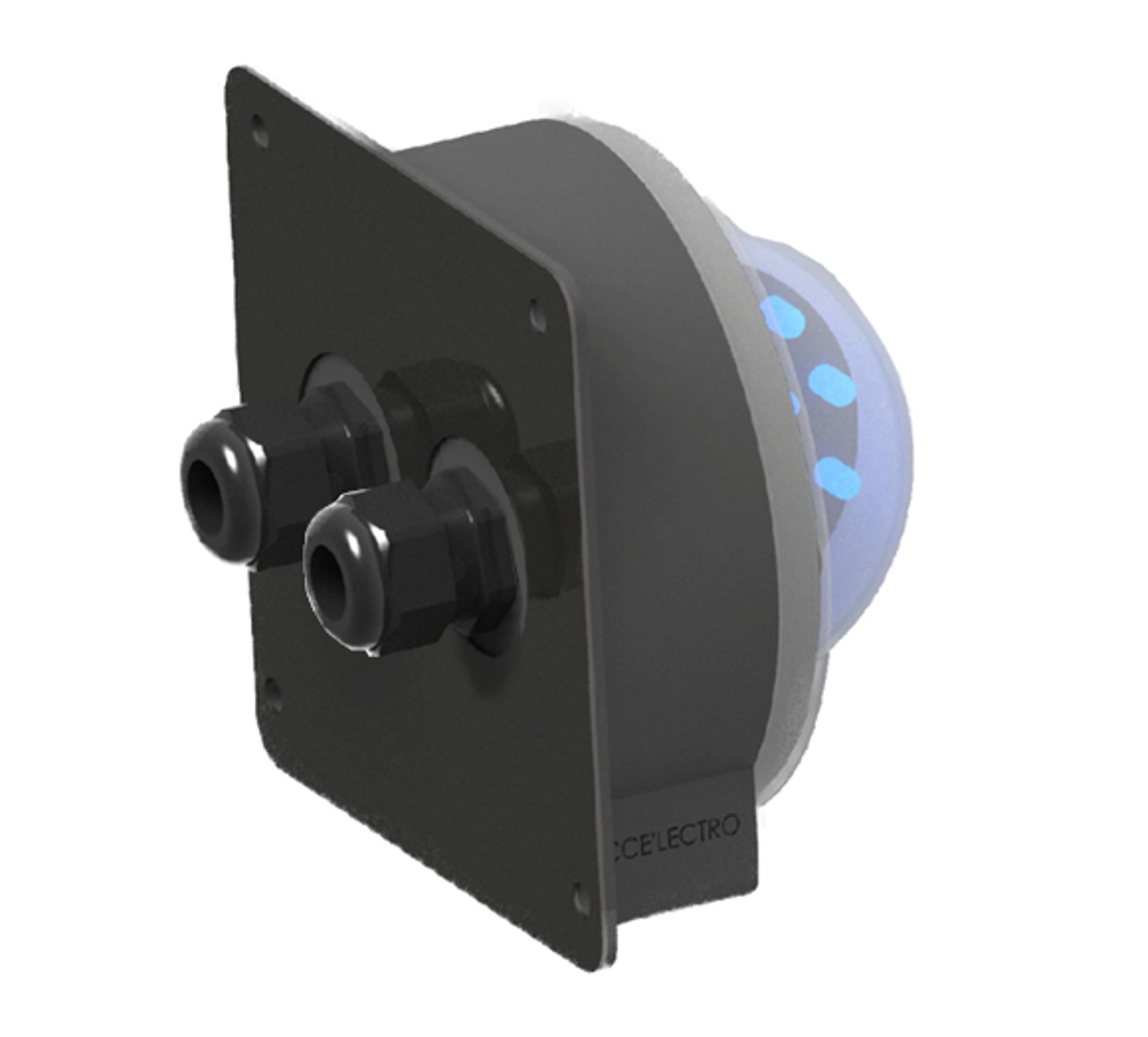

LED Tunnel Marker with waterproof plinth IP67 for the safety marking of road and motorway tunnels. These LED Markers with a junction box indicate the safety distance to be respected by motorists.

See all our LED Beacons here.

Achievements:
Hal Brussels Gate Tunnel

Request your quote
Categories: ,

VISION T 24 Vcc/ca

  • Dimensions : L125 x l125 x H115mm
  • Number of LEDs: 2*12
  • Power: 0,7 W
  • Body materials: Corps en polycarbonate anti UV 850°C M1
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 24Vcc
  • Electric class: Class III
  • Connection: Cable CR1C1 2×1.5mm² with 2 PE + terminal blocks
  • IK: IK10
  • IP : IP67
  • Fixation : 4 slots for screws
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

VISION T 48 Vcc/ca

  • Dimensions : L125 x l125 x H115mm
  • Number of LEDs: 2*12
  • Power: 1,5W
  • Body materials: Corps en polycarbonate anti UV 850°C M1
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 48Vcc
  • Electric class: Class III
  • Connection: Cable CR1C1 2×1.5mm² with 2 PE + terminal blocks
  • IK: IK10
  • IP : IP67
  • Fixation : 4 slots for screws
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

VISION T 230Vca

  • Dimensions : L125 x l125 x H115mm
  • Number of LEDs: 2*12
  • Power: 0, 5W
  • Body materials: Corps en polycarbonate anti UV 850°C M1
  • LED color: Blue | Amber
  • Lifespan: 150,000 hours
  • Voltage: 230Vca
  • Electric class: Class II
  • Connection: Cable CR1C1 2×1.5mm² with 2 PE + terminal blocks
  • IK: IK10
  • IP : IP67
  • Fixation : 4 slots for screws
  • Connector: Optional IP68 bypass waterproof connector
  • Support : Single or double PE for surface mounting as an option
  • Compliance: CE | 605598
  • Incandescent wire test: 850°C
  • Warranty: 5 years
  • Manufacturing location: France

Application

• tunnels Tagging

Technical sheet

Technical sheet Vision T rear PE base (PDF)
Vision T Rear PE Baseplate Technical Datasheet EN (PDF)
Plan Vision T embase (PDF)
